Specifications:

Key information
Product range	TeSys Deca
Product range	TeSys Deca

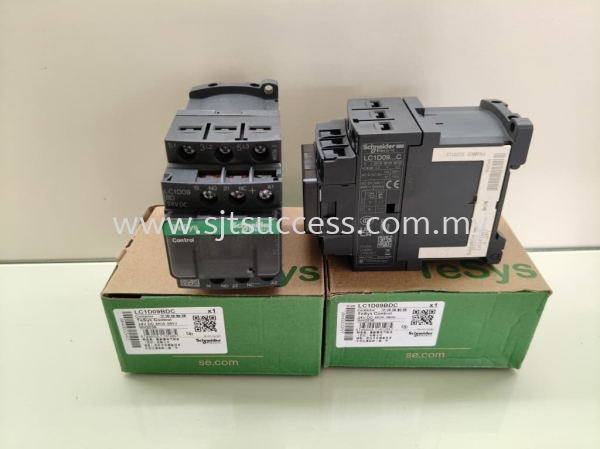

Product Type:	Contactor
Short name of the product	LC1D
Contactor application fields	It is used in AC loads with a power factor greater than or equal to 0.95, and is used in non-inductive or slightly inductive loads, and resistance furnaces
Use categories	AC-4 AC-1 AC-3 AC-3e
Extreme number	3P
Rated Operating Voltage [UE]	Power Circuit: < = 690 V AC 25...400 Hz Power Circuit: < = 225 V DC
Rated Operating Current [IE]	25 A (when operating temperature <=60 °C) when operating voltage <=<= 440 V AC AC-1 for power circuit 9 A (when operating temperature <=60 °C) when operating voltage <=<= 440 V AC AC-3 For power supply circuit 9 A (when operating temperature <=60 °C) When operating voltage <=<= 440 V AC AC-3e for power loops
Control Loop Voltage [UC]	24 V DC

Additional information
Motor Power (kW)	5.5 kW When operating voltage <=500 V AC 50/60 Hz (AC-3) 2.2 kW When operating voltage <=220/240 V AC 50/60 Hz (AC-3) 4 kW When operating voltage <=380/400 V AC 50/60 Hz (AC-3) 4 kW When operating voltage <=415/440 V AC 50/60 Hz (AC-3) 5.5 kW When operating voltage<=660/690 V AC 50/60 Hz (AC-3) 2.2 kW When operating voltage <=400 V AC 50/60 Hz (AC-4) 5.5 kW When operating voltage <=500 V AC 50/60 Hz (AC-3e). 2.2 kW When operating voltage <=220/240 V AC 50/60 Hz (AC-3e) 4 kW When operating voltage <=380/400 V AC 50/60 Hz (AC-3e) 4 kW When operating voltage <=415/440 V AC 50/60 Hz (AC-3e). 5.5 kW when operating voltage <=660/690 V AC 50/60 Hz (AC-3e)
model	LC1D
Loop contact type	3 NO
Protective cover	Belt
Agreed Heating Current [Ith]	25 A (when operating temperature <=60 °C) for the power loop 10 A (when operating temperature <=60 °C) for the signal loop
Rated Short-Time Withstand Current [ICW]	105 A for 10 s at <=40 °C for 10 s for the power circuit 210 A for the power circuit at <=40 °C for 10 s for the power circuit 30 A for the <=40 °C for 10 minutes for the power loop 61 A for the <=40 °C for 100 A for the power loop Lasts 1 s for the signal loop 120 A for 500 ms for the signal loop 140 A for the signal loop 100 ms for the signal loop
Fuse for use with relays	10 A gG for signal loops in accordance with IEC 60947-5-1 25 A gG when operating voltage <=<= 690 V with type 1, 20 A gG for power loops when operating voltage <=<= 690 V with type 2, for power loops
Average impedance	2.5 mΩ - Ith 25 A 50 Hz for power loops
Rated Insulation Voltage [UI]	Power Loop: 690 V in accordance with IEC 60947-4-1 Signal Loop: 690 V in accordance with IEC 60947-1
Overvoltage category	III
Contamination level	3
Rated Shock Withstand Voltage [UIMP]	6 kV in accordance with IEC 60947
Safe and reliable level	B10d = 1369863 times Contactors with nominal loads in accordance with EN/ISO 13849-1 B10d = 20000000 contactors with mechanical loads in accordance with EN/ISO 13849-1
Mechanical life	30 Mcycles
Electrical life	<= 440 V 2 Mcycles 9 A AC-3 Ue at 0.6 Mcycles 25 A AC-1 Ue <= 440 V 2 Mcycles 6.6 A AC-3 Ue at 660/690 V 2 Mcycles 9 A AC-3e Ue <= 440 V 2 Mcycles 6.6 A AC-3e Ue at 660/690 V
Control loop characteristics	DC standard
Surge suppression module	Built-in bidirectional peak current limiting diode
Control voltage limit	0.1...0.25 Uc (-40… 60 °C): Coil release 0.7...1.25 Uc (-40... 60 °C): Coil start
Surge Power (W)	5.4 W 20 °C)
Gripping Power (W)	5.4 W in... above 20 °C
Rated Operating Power (W)	5.4 W
Action time	63 ± 15 % ms closure and 20 ±20 % ms break
Time constant	28 ms
Maximum operating frequency	3600 times/hour at 60 °C
Wiring capability	Power Loop: Bolt Fastening 1 1... 4 mm² Lug OD Ø: 8 mm Cable Type: Flexible Wire Without Terminal Blocks Power Loop: Bolt Fastening 2 1... 4 mm² Lug OD Ø: 8 mm Cable Type: Flexible Wire Without Terminal Blocks Power Loop: Bolt Fastening 1 1... 4 mm² Lug OD Ø: 8 mm Cable Type: Flexible Wire with Terminal Blocks Power Circuit: Bolt Fastening 2 1... 2.5 mm² Lug OD Ø: 8 mm Cable Type: Flexible Wire with Terminal Blocks Power Circuit: Bolt Fastening 1 1... 4 mm² Lug OD Ø: 8 mm Cable Type: Hardwire Without Terminal Blocks Power Loop: Bolt Fastening 2 1... 4 mm² lug OD Ø: 8 mm Cable type: Hardwire without terminal blocks Control loop: Bolt fastening 1 1... 4 mm² Cable Type: Flexible Wire Without Terminal Blocks Control Loop: Bolt Fastening 2 1... 4 mm² Cable Type: Flexible Cord Without Terminal Blocks Control Loop: Bolt Fastening 1 1... 4 mm² Cable Type: Flexible Wire with Terminal Blocks Control Loop: Bolt Fastening 2 1... 2.5 mm² Cable Type: Flexible Wire with Terminal Blocks Control Loop: Bolt Fastening 1 1... 4 mm² Cable Type: Hardwire Without Terminal Blocks Control Loop: Bolt Fastening 2 1... 4 mm² Cable Type: Hardwire Without Terminal Blocks Power Loop: Screw connection
Fastening torque	Power circuit: 1.7 N.m Fastening by bolt with screwdriver Ø 6 Flat power circuit: 1.7 N.m by bolt fastening with screwdriver No 2 Phillips screw control loop: 1.7 N.m by bolt fastening with screwdriver Ø 6 Flat control loop: 1.7 N.m by bolt fastening with screwdriver No 2 Phillips screw Power circuit: 1.7 N.m via cable connector with screwdriver Ø 6 Flat screw: M3.5 Power loop: 1.7 N.m via cable connector with screwdriver No 2 Phillips screw Screw: M3.5 Control loop: 1.7 N.m by bolt fastening with screwdriver pozidriv No 2 Power circuit: 1.7 N.m by bolt fastening with screwdriver pozidriv No 2
Auxiliary contact type	Type Mechanical connection 1 NO + 1 NC according to IEC 60947-5-1 Type Mirrored with main contact state 1 NC according to IEC 60947-4-1
Auxiliary contacts available on each contactor	1 NO + 1 NC
Signal loop frequency	25...400 Hz
Minimum Switching Current [Imin]	5 mA for signal loops
Minimum switching voltage	17 V for signal loops
Insulation resistance	> 10 MΩ for signal loops
No overlapping time	1.5 ms Loss of power between NC and NO contacts 1.5 ms Gain power between NC and NO contacts
Installation method:	Rail mounting base plate mounting
