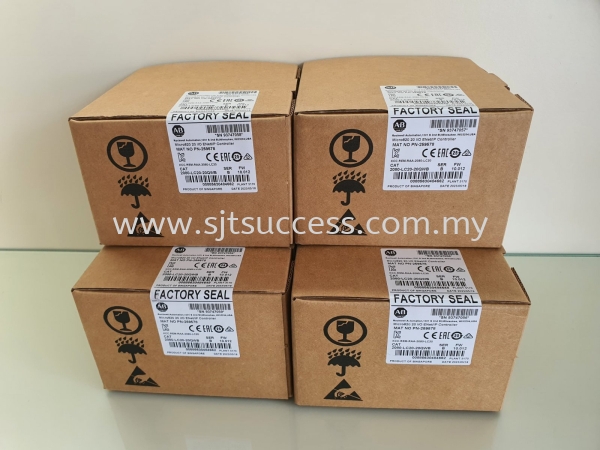

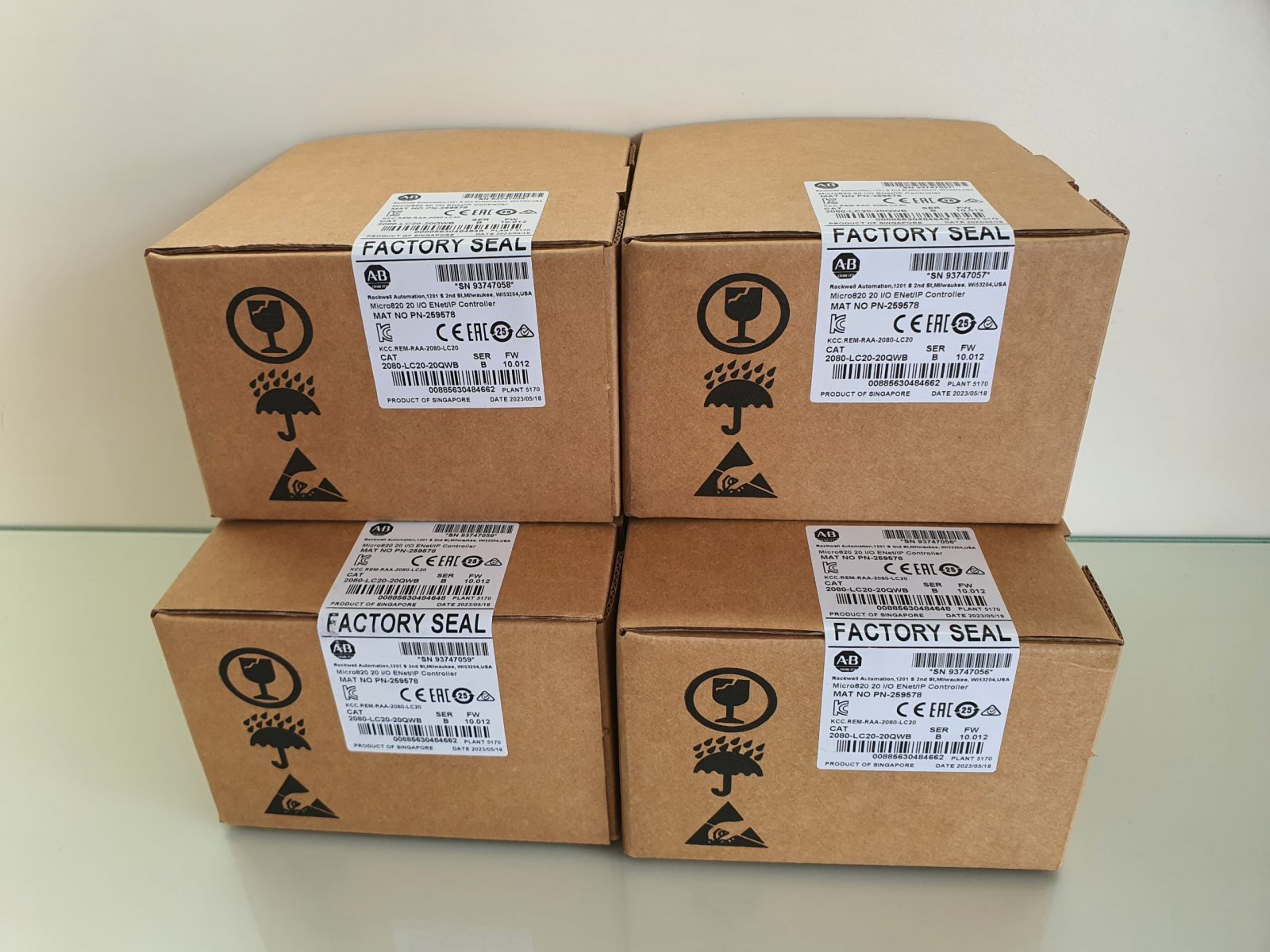

Technical specifications for 2080-LC20-20QWB

Manufacturer	Rockwell Automation
Part Number/Catalog No.	2080-LC20-20QWB
Brand	Allen-Bradley
Product Family:	Micro 800
Product Description:	Micro 820 Programmable Logic Controller (PLC)
No. of Inputs:	Twelve (12) 24VDC / VAC discrete inputs;
No. of Outputs:	Seven (7) Relay outputs;
No. of Analog inputs:	Four (4) 0-10V (shared with 24V DC)
No. of Analog outputs	One (1) 0-10VDC
Communication ports:	One (1) Ethernet; One (1) RS232; One (1) USB
Plug-in slots:	2
Program Steps (or instructions):	10Ksteps
Data (bytes):	20Kbytes (up to 400bytes non-volatile)
IEC 61131-3 Languages:	Ladder Diagram, Function Block, Structured Text
Product Type	Programmable Controller
Inputs	12(24V DC)
Outputs	7(Relay); 1 (Analog Out)
Dimensions HxWxD	3.54 x 4.09 x 2.95 in.
Power Input	24V DC
Power Dissipation	6 W
Power Supply Voltage Range	20.4-26.4V DC, Class 2
Enclosure	Meets IP20
Non-Isolated DC Input On-state Voltage Range	9.8-26.4V DC
Relay Output Voltage min.	5V DC/ AC
Relay Output Voltage max.	250V AC
Pilot Duty Rating	C300, R150
Terminal Block	Fixed
