Specifications & ordering info

Ordering information

Points	Type	Rated voltage	Rated current	Remarks	Connection type	Order code 1
16	AC or DC input	120 VAC or VDC	10 mA	-	M3	CS1W-IA111
16	AC input	240 VAC	10 mA	-	M3	CS1W-IA211
16	DC input	24 VDC	7 mA	-	M3	CS1W-ID211
16	DC input	24 VDC	7 mA	Inputs start interrupt tasks in PLC program	M3	CS1W-INT01
16	DC input	24 VDC	7 mA	Latches pulses down to 50 µs pulse width	M3	CS1W-IDP01
32	DC input	24 VDC	6 mA	-	1 × 40 pt Fujitsu	CS1W-ID231
64	DC input	24 VDC	6 mA	-	2 × 40 pt Fujitsu	CS1W-ID261
96	DC input	24 VDC	5 mA	-	2 × 56 pt Fujitsu	CS1W-ID291
8	Triac output	250 VAC	1.2 A	-	M3	CS1W-OA201
16	Triac output	250 VAC	0.5 A	-	M3	CS1W-OA211
8	Relay output	250 VAC	2.0 A	-	M3	CS1W-OC201

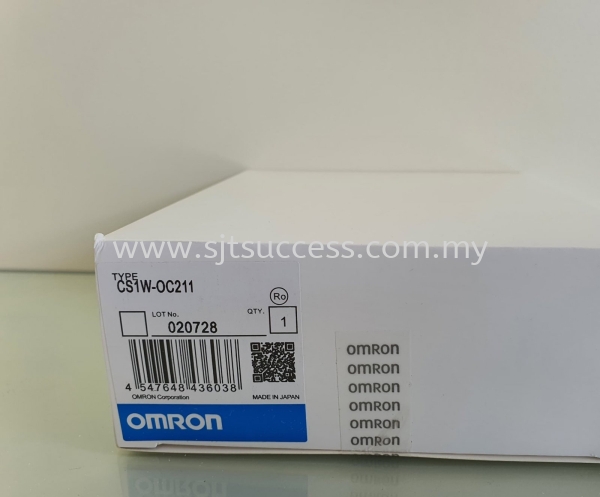

16	Relay output	250 VAC	2.0 A	-	M3	CS1W-OC211
16	DC output (sink)	12 to 24 VDC	0.5 A	-	M3	CS1W-OD211
16	DC output (source)	24 VDC	0.5 A	With short-circuit protection, alarm	M3	CS1W-OD212
32	DC output (sink)	12 to 24 VDC	0.5 A	-	1 × 40 pt Fujitsu	CS1W-OD231
32	DC output (source)	24 VDC	0.5 A	With short-circuit protection, alarm	1 × 40 pt Fujitsu	CS1W-OD232
64	DC output (sink)	12 to 24 VDC	0.3 A	-	2 × 40 pt Fujitsu	CS1W-OD261
64	DC output (source)	24 VDC	0.3 A	With short-circuit protection, alarm	2 × 40 pt Fujitsu	CS1W-OD262
96	DC output (sink)	12 to 24 VDC	0.1 A	-	2 × 56 pt Fujitsu	CS1W-OD291
96	DC output (source)	24 VDC	0.1 A	-	2 × 56 pt Fujitsu	CS1W-OD292
32+32	DC output (sink)	12 to 24 VDC	0.3 A	-	2 × 40 pt Fujitsu	CS1W-MD261
32+32	DC in+out (source)	24 VDC	0.3 A	With short-circuit protection, alarm	2 × 40 pt Fujitsu	CS1W-MD262
48+48	DC output (sink)	12 to 24 VDC	0.1 A	-	2 × 56 pt Fujitsu	CS1W-MD291
48+48	DC in+out (source)	12 to 24 VDC	0.1 A	-	2 × 56 pt Fujitsu	CS1W-MD292
