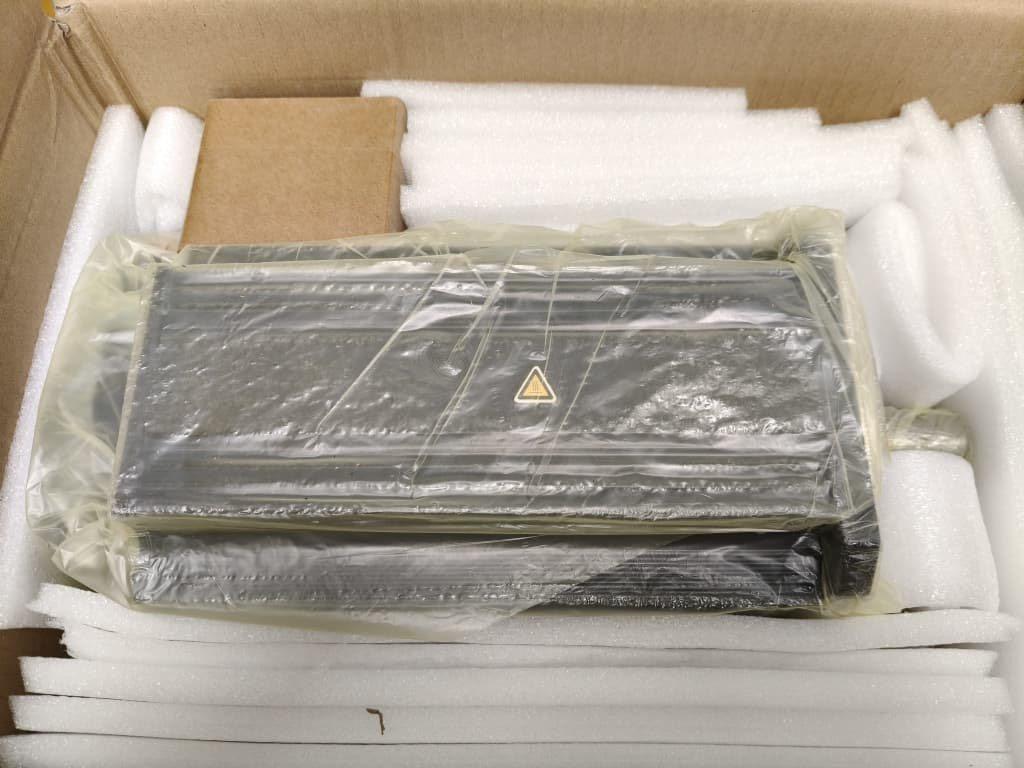

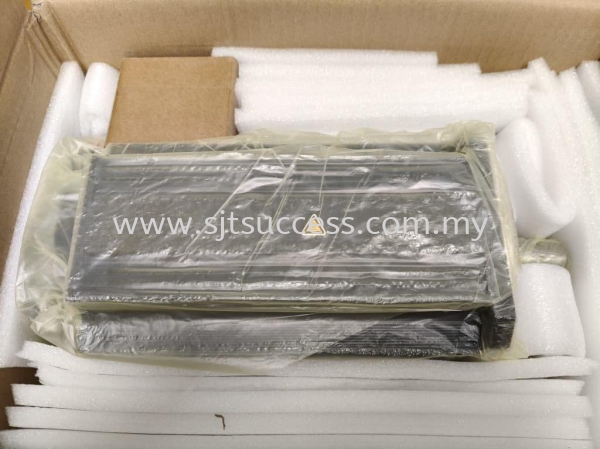

Panasonic MDMA302P1H MINAS A4 Family Servo Motor Malaysia
| Item | Specifications |
|---|---|
| Part Number | MDMA302P1H |
| Product details | Middle inertia, Connector type, IP65 |
| Family Name | MINAS A4 Family |
| Series | MDMA Series |
| Type | Middle inertia |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 130 mm sq. |
| Flange size (mm) | 130 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Voltage specifications (V) | 200 |
| Rated output (W) | 3000 |
| Holding brake | with |
| Mass (kg) | 16.5 |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 14.3 |
| Momentary Max. peak torque (N ⋅ m) | 42.9 |
| Max. current [Reference value] (A 0-p) | 76.0 |
| Regenerative brake frequency (times/min) |
Without option :No limit With option : No limit Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel |
| Rated rotational speed (r/min) | 2000 |
| Max. rotational speed (r/min) | 3000 |
| Inertia of rotor ( x10-4 kg ⋅ m²) | 24.6 |
| Recommended inertia ratio | 10times or less |
| Rotary encoder: specifications | 2500 P/r Incremental systemA |
