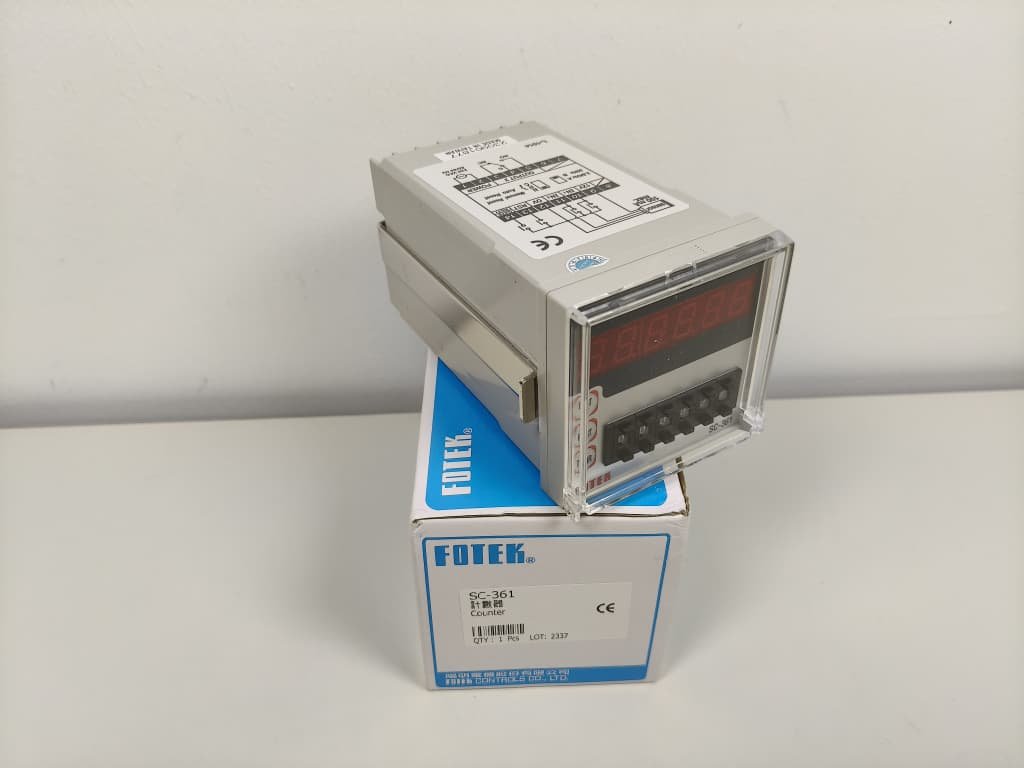

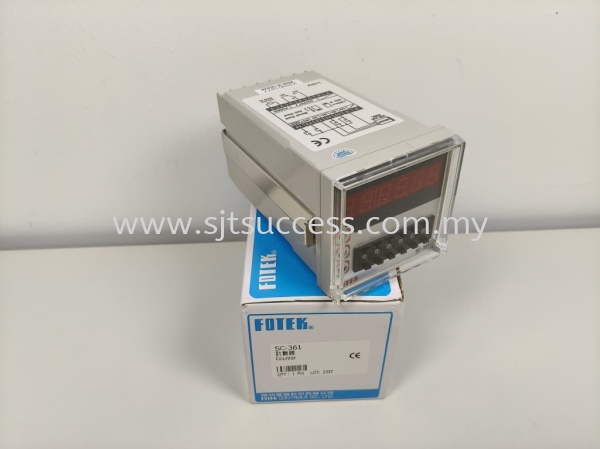

Fotek SC-361 Multi-function Counter Malaysia
|
Model
|
SC-361
|
|
Input Method
|
Single Phase or Two Phase
|
|
Counting Method
|
Increasement or Decreasement Counting
|
|
Output Method
|
One Relay
|
|
Power Supply
|
110V or 220VAC ±20% , 50/60Hz , 5VA max. ””””””””””Selectable
|
|
DC Power Output
|
60mA / 12VDC Max.
|
|
Response Frequence
|
Speed(A)£¼2.5K CPS , Low Speed(B) £¼60CPS
|
|
Memory Method
|
EEPROM
|
|
Output Control
|
N/R/C ””””””””””””””””””””””””””””””””””””””””Selectable
|
|
Contact Rated
|
5A/250VAC Max.
|
|
Output Delay Timer
|
Auto Reset Timer Range : 0.01S~99.99S
|
|
Divisor
|
Range : 1 ~9999
|
|
Multiplier
|
Range : 0.001~9.999
|
|
ESD Strength
|
Over 8KV
|
|
Dielectric Strength
|
Over 2.5KV/1min , Between Power And Each Terminal
|
|
Isolation Strength
|
Over 100MΩ/500VDC , Between Power And Each Terminal
|
|
Operating Temp./Hum.
|
-20°C~+80°C ; 35%~85%RH
|
