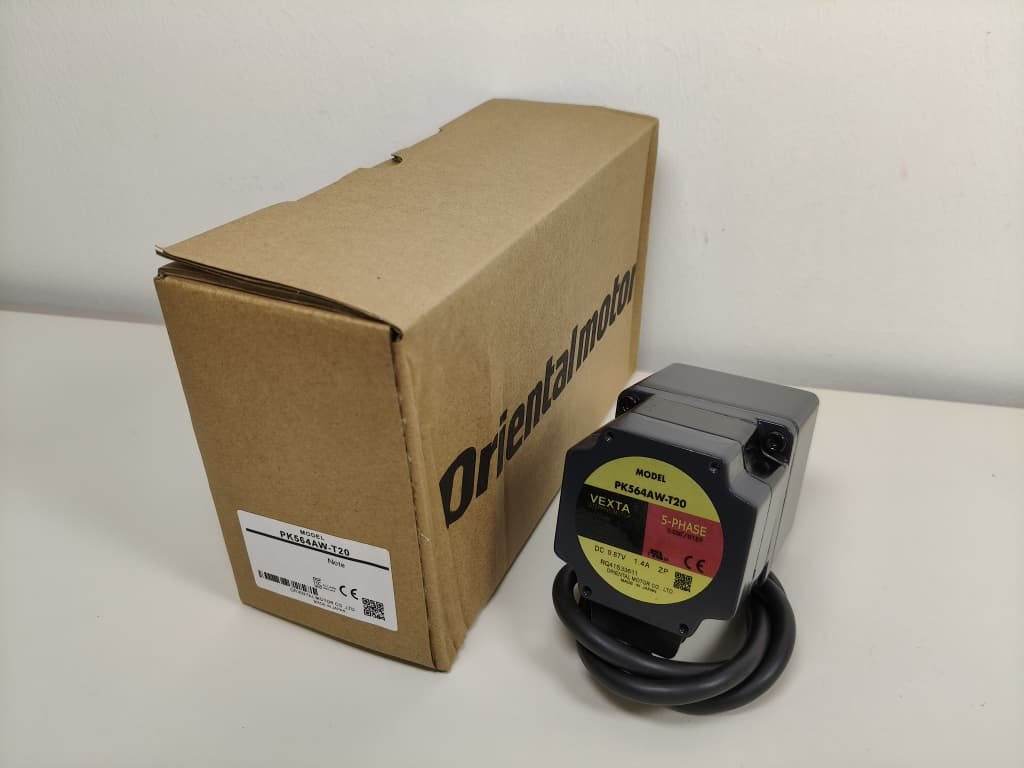

Oriental Motor PK564AW-T20 5-Phase Stepper Motor Malaysia
ORIENTAL MOTOR MALAYSIA ORIENTAL MOTOR STEPPER PK564AW-T20 PRICE PK564AW-T20 MALAYSIA ORIENTAL MOTOR PK
Frame Size |
2.36 in |
Motor Length |
3.68 in. |
Basic Step Angle |
0.72º |
Speed-Torque Characteristics |
Speed-Torque Characteristics |
Holding Torque |
480 oz-in |
Current per Phase |
1.4 A/phase |
Type |
Geared |
Shaft/Gear Type |
Taper Hobbed Gear |
Gear Ratio (X:1) |
20 :1 |
Gear Type |
Taper Hobbed, Low Backlash (up to 45 arc min), Offset Shaft |
Backlash |
10 arc min (0.17º) |
Motor Connection Type |
Flying Leads |
Shaft |
Single |
Step Angle |
0.036 ° |
Connection Type |
New Pentagon (Bipolar) |
Lead Wires |
5 |
Rotor Inertia |
0.96 oz-in² |
RoHS Compliant |
Yes |
Safety Standards |
ULCSAENCE |
California Proposition 65 |
⚠ CA WARNING Cancer risk from exposure to Nickel. See www.P65Warnings.ca.gov Risk of reproductive harm from exposure to Di-n-hexyl phthalate (DnHP). See www.P65Warnings.ca.gov Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl phthalate (DEHP). See www.P65Warnings.ca.gov See ''?'' or copy/paste www.P65Warnings.ca.gov in your browser. |
Insulation Resistance |
100 MΩ minimum under normal temperature and humidity, when measured by a 500 VDC megger between the windings and the motor casing. |
Dielectric Strength |
Sufficient to withstand 1.5 kV, 50 Hz or 60 Hz applied for one minute between the windings and casing, under normal temperature and humidity. |
Temperature Rise |
Temperature rise of the coil measured by the Change Resistance Method is 144ºF (80ºC) or less (at rated current, at standstill, five phases energized). |
Insulation Class |
Class B [266ºF (130ºC)], Recognized as Class A 221ºF (105ºC) by UL standard |
Ambient Temperature Range |
14ºF ~ 122ºF (-10ºC ~ 50ºC) (nonfreezing) |
Ambient Humidity |
85% or less (noncondensing) |
Shaft Runout |
0.002 in. (0.05 mm) T.I.R. at top of output shaft |
Concentricity |
0.003 in. (0.075 mm) T.I.R. |
Perpendicularity |
0.003 in. (0.075 mm) T.I.R. |
Radial Play |
0.001 in. (0.025 mm) max. of 1.12 lb. (5 N) |
Axial Play |
0.003 in. (0.075 mm) max. of 2.2 lb. (10 N) |
Radial Load |
0 in. from Shaft End = 15.7 lb0.2 in. from Shaft End = 18 lb0.39 in. from Shaft End = 22 lb0.59 in. from Shaft End = 27 lb0.79 in. from Shaft End = 33 lb |
Axial Load |
9 lb |
