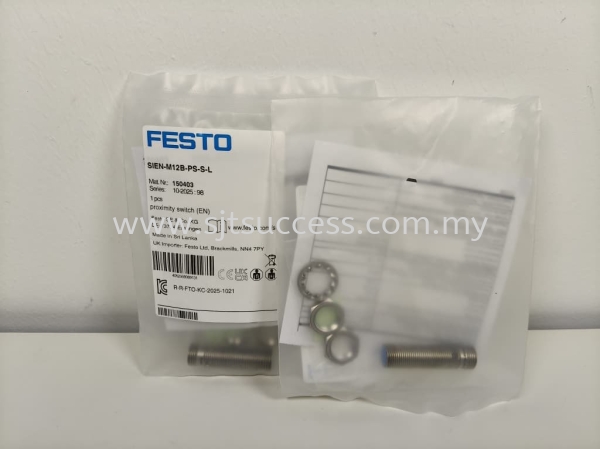

Technical Data Proximity sensor SIEN-M12B-PS-S-L

• Conforms to standardEN 60947-5-2
• Symbol00991701
• ApprovalRCM c UL us - Listed (Oil)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)according to UK RoHS instructions (UK-R)
• Rated operating distance2 mm
• Assured operating distance1.62 mm
• Reduction factorsAluminium = 0.4 Stainless steel St 18/8 = 0.6 Copper = 0.3 Brass = 0.5 Steel St 37 = 1.0
• Ambient temperature-25 °C ... 70 °C
• Repetition accuracy with constant conditions0.1 mm
• Switching outputPNP
• Switching element functionN/O contact
• Hysteresis≤0.18 mm
• Max. switching frequency3000 Hz
• Max. output current200 mA
• Voltage drop≤2 V
• Inductive protective circuitIntegrated
• Short circuit current ratingPulsed
• Operational voltage range DC10 V ... 30 V
• Residual ripple± 10%
• No-load supply current≤10 mA
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typePlug
• Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101
• Electrical connection 1, number of connections/cores4
• Electrical connection 1, type of mountingNot rotatable
• Electrical connection 1, compatible type of mountingCompatible with rotatable screw-type lock
• SizeM12x1
• Type of mountingVia lock nut
• Mounting typeFlush
• Product weight30 g
• Material housingPBTP nickel-plated
• Switching status indicationYellow LED
• Ambient temperature with moving cable-5 °C ... 70 °C
• Degree of protectionIP65 IP67
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Additional information for sensor selectionWith standards-based switching distance
• Electrical outputPNP
• Selection of sensor designStandard
