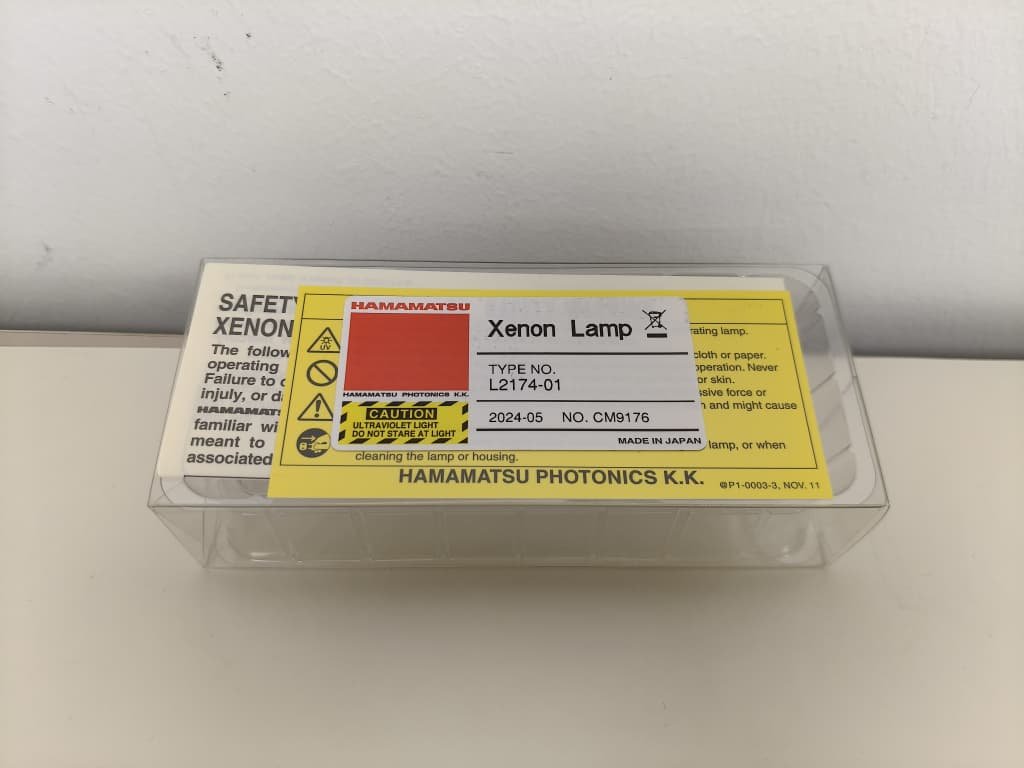

Hamamatsu L2174-01 Xenon Lamp Malaysia
| Product Name | Xenon Lamp |
|---|---|
| Lamp Rating | 75 W |
| Arc Length | 1.3 mm |
| Lamp Current | 5.4 A +/-0.5 A |
| Lamp Voltage | 15 V |
| Window Material | Fused Silica |
| Spectral Distribution (Short) | 185 nm |
| Spectral Distribution (Long) | 2000 nm |
| Light Output Stability Drift Typ. | +/-0.5 %/h |
| Light Output Stability Fluctuation (p-p) Max. | 1 % |
| Guaranteed Operation Life | 1000 h |
| Average Life | 2000 h |
| Orientation | Vertical +/-15 degree or Horizontal +/-15 degree |
| Cooling Method | Convection Cooling |
| Trigger Voltage | 15 kV |
| Weight | 15 g |
