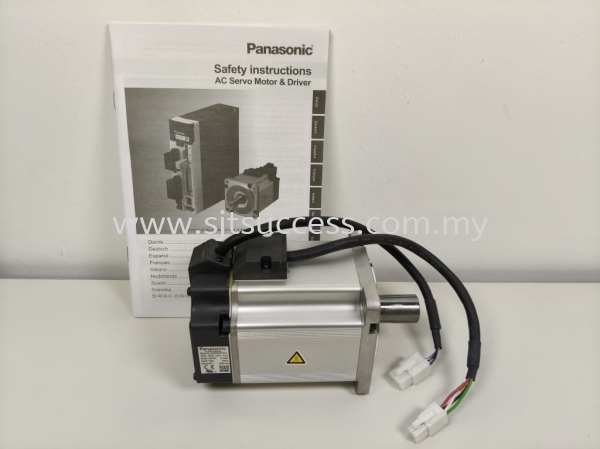

Panasonic MSMF012L1S2 MINAS A6 Family Servo Motor Malaysia
Panasonic Servo Motor Malaysia PANASONIC MINAS MSMF012L1S2 MALAYSIA MSMF012L1S2 PRICE PANASONIC MSMF
| Item | Specifications |
|---|---|
| Part Number | MSMF012L1S2 |
| Product details | Low inertia, Lead wire type |
| Family Name | MINAS A6 |
| Series | MSMF Series |
| Type | Low inertia |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 38 mm sq. |
| Flange size (mm) | 38 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | 0.5 |
| Voltage specifications (V) | 200 |
| Rated output (W) | 100 |
| Rated current [Reference value] (A rms) | 1.1 |
| Holding brake | without |
| Mass (kg) | 0.47 |
| Oil seal | without |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 0.32 |
| Continuous stall torque (N ⋅ m) | 0.32 |
| Momentary Max. peak torque (N ⋅ m) | 0.95 |
| Max. current [Reference value] (A 0-p) | 4.7 |
| Regenerative brake frequency (times/min) |
Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4281 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Max. rotational speed (r/min) | 6000 |
| Inertia of rotor ( x10-4 kg ⋅ m²) | 0.048 |
| Recommended inertia ratio | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
