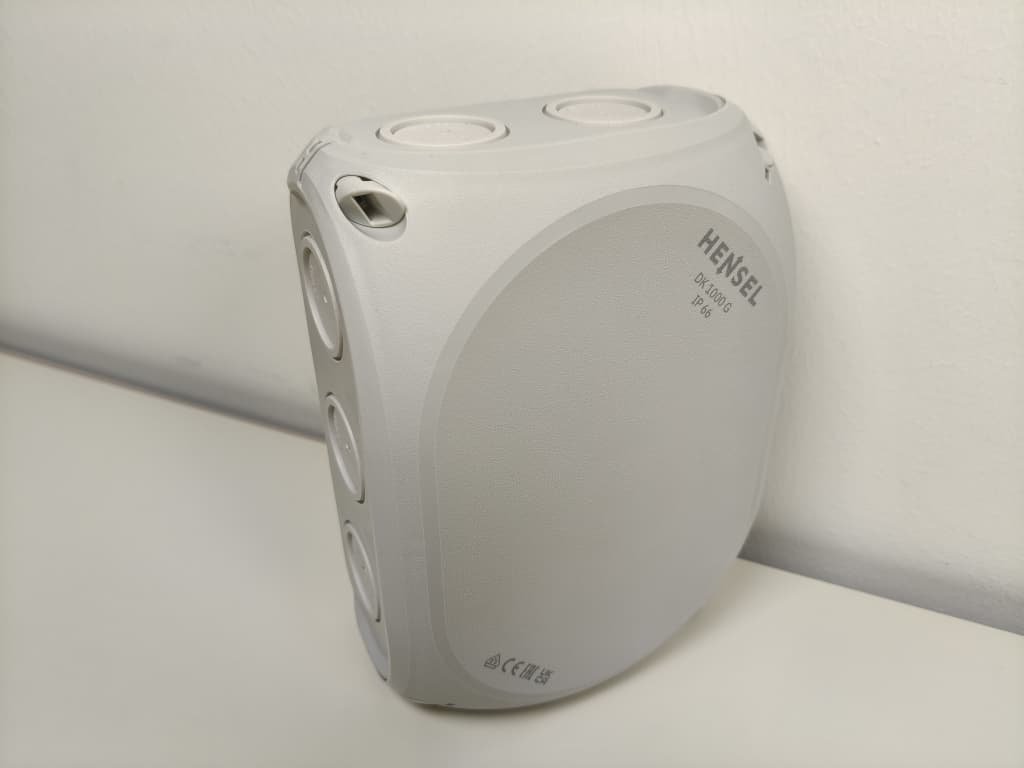

Hensel DK 1000 G Junction Box Malaysia

WhatsApp me if you interested

Rated insulation voltage:

U_i = 1000 V

Cable entries:

10	elastic membranes	M25, M32	9 mm - 21 mm	wall
2	elastic membranes	without	9 mm - 20 mm	bottom

Type of lid fastening:

Quick locking: opening and closing by quarter turn, locked position well visible (open - locked)

Delivered accessories:

external brackets, retaining strap, sealing plug

IP degree of protection:

IP66

Impact strength:

IK07

Sealable without accessories:

Yes

Application area:

Indoor installation

Maximum ambient temperature 24 h:

35 °C

Ambient temperature:

-25 °C up to +40 °C

Relative humidity:

≤ 50 % at 40 °C, ≤ 100 % at 25 °C

Material:

Polypropylene

Glow wire test according to IEC 60695-2-11:

750 °C

UL 94:

V-2

Temperature resistance:

-25 °C up to +80 °C

Halogen-free:

Yes

Silicone-free:

Yes

Height:

130 mm

Width:

180 mm

Depth:

77 mm

Net weight:

0.241 kg

Mounting height:

97 mm

Mounting width:

150 mm

Mounting depth:

62 mm
