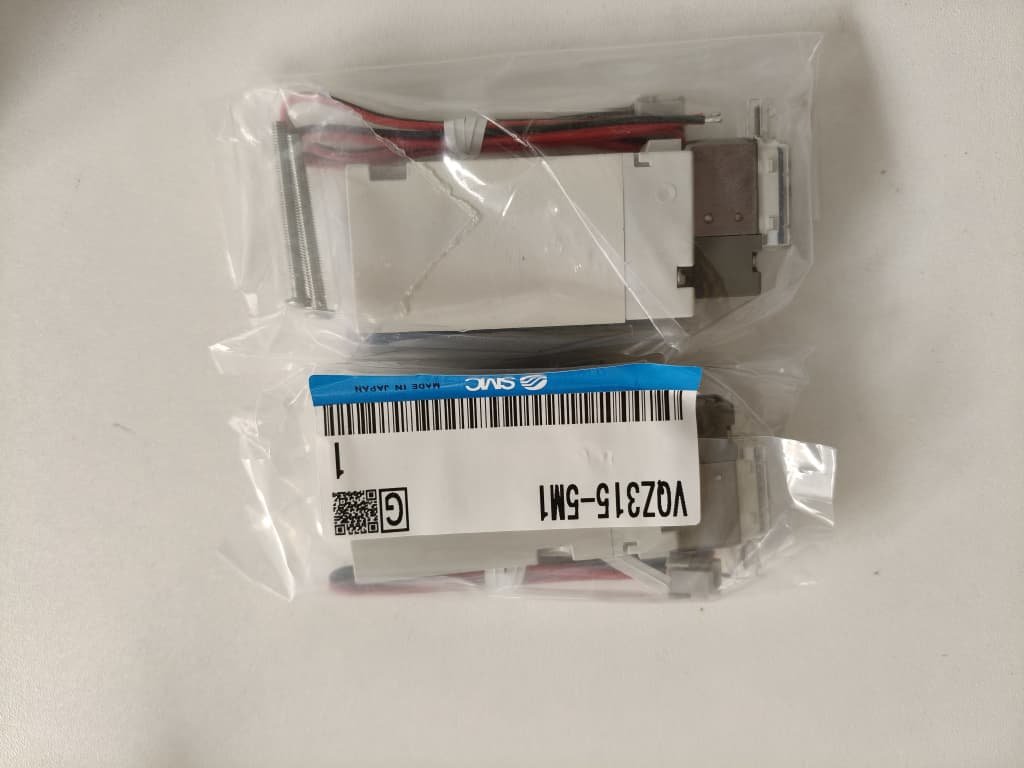

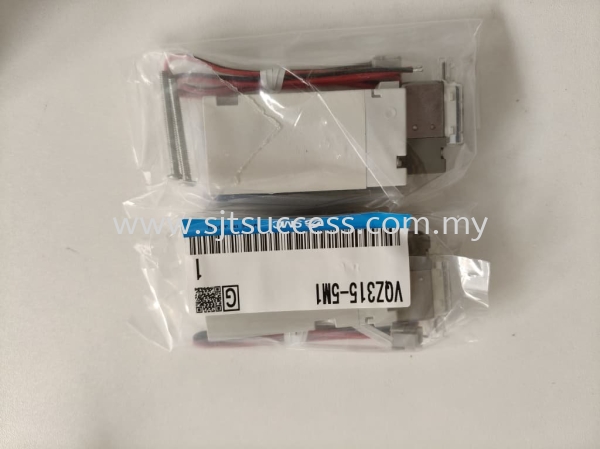

SMC VQZ315-5M1 Valve Malaysia
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
- Fluid: air/inert gas
-
Operating pressure range: 0.1 - 0.7MPa
(high pressure type 1.0MPa) -
Effective area mm 2 (Cv):
metal seal 2.2 (0.12) - 16.2 (0.9); rubber seal 3.6 (0.2) - 21.6 (1.2) -
Coil rated voltage: 12, 24VDC;
100, 110, 200, 220VAC -
Response time (ms) standard 1W, high pressure 1.5W:
metal seal 25 or less; rubber seal 30 or less -
Ambient and fluid temperature: -10 to 50 C
VALVE, BASE MOUNT (DC)VALVEVQZ300 VALVE, SOL 3-PORT2AVQZ300 NO SIZE RATING.20943 lb
