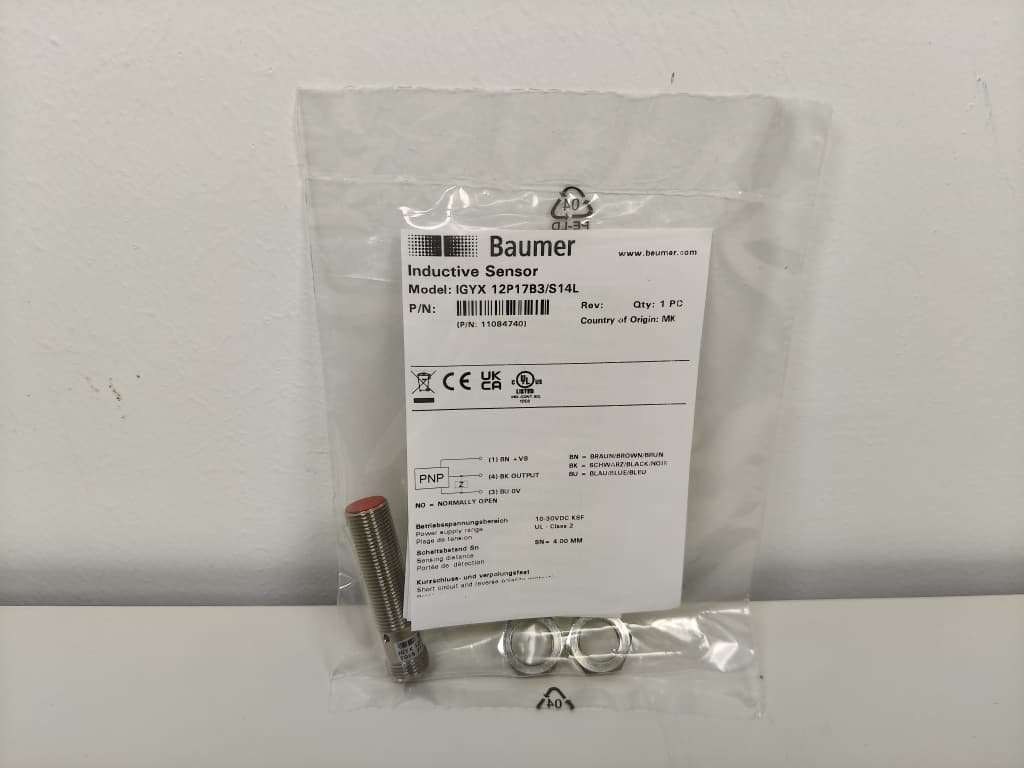

Baumer IGYX 12P17B3/S14L Inductive Proximity Switch Malaysia
BAUMER SENSOR MALAYSIA IGYX 12P17B3/S14L MALAYSIA IGYX 12P17B3/S14L PRICE BAUMER IGYX BAUMER 11084740
General data
- Mounting type
-
- Flush
- Nominal sensing distance Sn
-
- 4 mm
- Assured sensing distance Sa
-
- 3.2 mm
- Temperature drift
-
- ± 10 % of Sr (0 ... +60 °C)
- Hysteresis
-
- 3 … 20 % of Sr
- Output indicator
-
- 3 port LED red
Electrical data
- Switching frequency
-
- 1.5 kHz
- Voltage supply range +Vs
-
- 10 … 30 VDC
- Current consumption max. (no load)
-
- 15 mA
- Output circuit
-
- PNP make function (NO)
- Voltage drop Vd
-
- <2.5 VDC
- Output current
-
- 200 mA
- Short circuit protection
-
- Yes
- Reverse polarity protection
-
- Yes
Mechanical data
- Design
-
- Cylindrical threaded
- Material (sensing face)
-
- PBT, red
- Housing material
-
- Brass nickel plated
- Dimension
-
- 12 mm
- Housing length
-
- 50 mm
- Connection types
-
- Connector M12
- Tightening torque max.
-
- 10 Nm
Ambient conditions
- Operating temperature
-
- -25 … +75 °C
- Protection class
-
- IP 67
