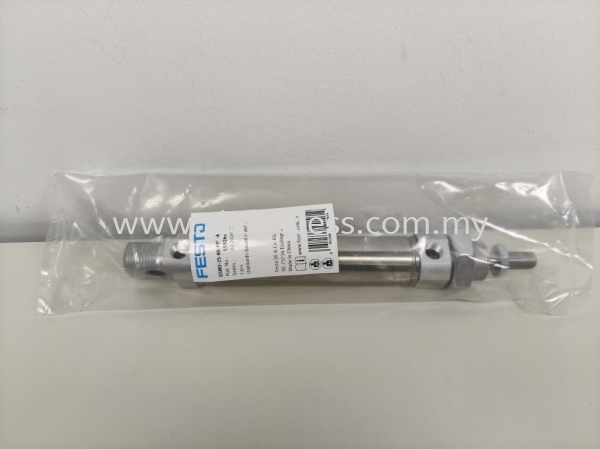

Technical Data

• Stroke80 mm
• Piston diameter25 mm
• Piston rod threadM10x1.25
• CushioningSelf-adjusting pneumatic end-position cushioning
• Mounting positionAny
• Conforms to standardISO 6432
• Piston-rod endMale thread
• DesignPiston Piston rod Cylinder barrel
• Position detectionVia proximity switch
• Symbol00992970
• VariantsPiston rod at one end
• Operating pressure0.1 MPa ... 1 MPa
• Operating pressure1 bar ... 10 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
• Ambient temperature-20 °C ... 80 °C
• Impact energy in end positions0.3 J
• Cushioning length17 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247.4 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke294.5 N
• Moving mass for 0 mm stroke71 g
• Additional moving mass per 10 mm stroke6 g
• Basic weight for 0 mm stroke238 g
• Additional weight per 10 mm stroke11 g
• Type of mountingWith accessories
• Pneumatic connectionG1/8
• Note on materialsRoHS compliant
• Material coverWrought aluminium alloy Colourless anodised
• Material sealsNBR TPE-U(PU)
• Material piston rodHigh-alloy stainless steel
• Material cylinder barrelHigh-alloy stainless steel
