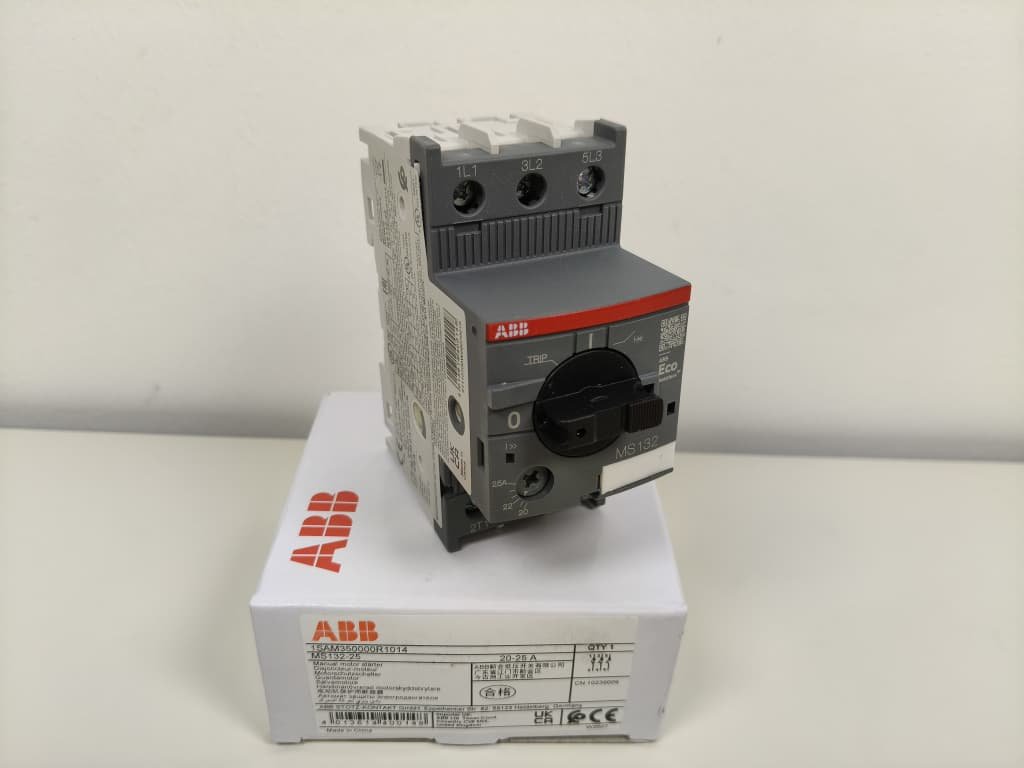

ABB MS132-25 Manual Motor Starter Malaysia

Rated Service Short-Circuit Breaking Capacity (Ics):

						(230 V AC) 50 kA

						(250 V DC) 3 Poles in Series 10 kA

						(400 V AC) 50 kA

						(440 V AC) 30 kA

						(500 V AC) 10 kA

						(690 V AC) 3 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu):

						(230 V AC) 50 kA

						(400 V AC) 50 kA

						(440 V AC) 30 kA

						(500 V AC) 10 kA

						(690 V AC) 3 kA

Rated Instantaneous Short-Circuit Current Setting (Ii):

						375 A

Setting Range:

						20 ... 25 A

Rated Operational Power AC-3 (Pe):

						(400 V) Three Phase 11 kW

Rated Operational Power AC-3e (Pe):

						(400 V) Three Phase 11 kW

Rated Operational Voltage:

						Main Circuit 690 V AC

						Main Circuit 250 V DC

Rated Operational Current (Ie):

						25 A

Rated Operational Current AC-3 (Ie):

						25 A

Rated Operational Current AC-3e (Ie):

						25 A

Rated Operational Current DC-5 (Ie):

						25 A

Rated Frequency (f):

						Main Circuit 50 Hz

						Main Circuit 60 Hz

Operating Frequency (fsw):

						0 ... 400 Hz

Rated Impulse Withstand Voltage (Uimp):

						Main Circuit 6 kV

Rated Insulation Voltage (Ui):

						690 V

Power Loss:

						at Rated Operating Conditions per Pole 1.8 ... 2.8 W

Number of Poles:

3P

Conventional Free-air Thermal Current (Ith):

						Main Circuit 25 A

Degree of Protection:

						Housing IP20

						Main Circuit Terminals IP10

Pollution Degree:

3

Electrical Durability:

						50000 cycle

Mechanical Durability:

						Nr. Operations 100000 cycle

Terminal Type:

						Screw Terminals

Connecting Capacity Main Circuit:

						Flexible with Ferrule 1/2x 0.75 ... 6 mm²

						Flexible with Insulated Ferrule 1/2x 0.75 ... 6 mm²

						Flexible 1/2x 1 ... 2.5 mm²

						Flexible 1/2x 2.5 ... 6 mm²

						Rigid 1/2x 1 ... 2.5 mm²

						Rigid 1/2x 2.5 ... 6 mm²

Tightening Torque:

						Main Circuit 2 N·m

Wire Stripping Length:

						Main Circuit 10 mm

Recommended Screw Driver:

						Pozidriv 2

Mounting Position:

						1 ... 6

Mounting on DIN Rail:

						TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

						TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Minimum Mounting Distance:

						Electrical Conductive Board, Horizontal - Up to 400 V 0 mm

						Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm

						Electrical Conductive Board, Vertical 75 mm

						Other Device Same Type, Horizontal 0 mm

						Other Device Same Type, Vertical 150 mm

Contact Position Indication:

						ON / OFF / TRIP

Standards:

						IEC/EN 60947-1

						IEC/EN 60947-2

						IEC/EN 60947-4-1

						UL 60947-1

						UL 60947-4-1

						IEC 60335-2-40 A2L

Remarks:

						UL508 Self-Protected Combination Motor Controller (Type E) in combination with feeder block S1-M3-xx
