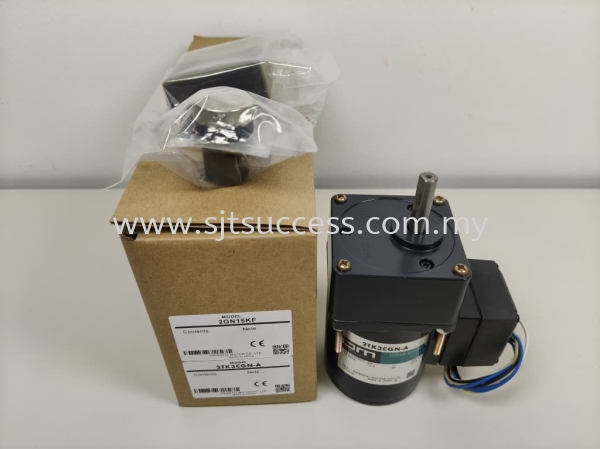

Oriental Motor 2TK3CGN-A Motor Malaysia
Specifications
| Frame Size | 60 mm |
|---|---|
| Shaft/Gear Type | Pinion Shaft Type |
| Gear Ratio | - |
| Rotation Direction | Depends on the combination gear head. |
| Service Rating (When Locked) |
Single-Phase 100 VAC / 50 Hz / Setting Resistance VACalue 0 kΩ: 5Minutes Single-Phase 100 VAC / 50 Hz / Setting Resistance VACalue Approx. 10 kΩ: Continuous Single-Phase 100 VAC / 60 Hz / Setting Resistance VACalue 0 kΩ: 5Minutes Single-Phase 100 VAC / 60 Hz / Setting Resistance VACalue Approx. 7 kΩ: Continuous |
|
Voltage/ Frequency/ Maximum Output Current/ Input at Maximum Output Power (5 Minutes Service Rating） |
Single-Phase 100 VAC / 50 Hz / 0.5 A / 48 W Single-Phase 100 VAC / 60 Hz / 0.6 A / 60 W |
|
Voltage/ Frequency/ Maximum Output Current/ Input at Maximum Output Power (Continuous Service Rating) |
Single-Phase 100 VAC / 50 Hz / 0.35 A / 21 W Single-Phase 100 VAC / 60 Hz / 0.4 A / 22 W |
| Starting Torque (Motor Shaft, 5 Minutes Service Rating) | Depends on the combination gear head. |
| Starting Torque (Motor Shaft, Continuous Service Rating) | Depends on the combination gear head. |
| Gearhead Output Shaft Starting Torque (5 Minutes Service Rating) | Depends on the combination gear head. |
| Maximum Output Power (5 Minutes Service Rating) |
Single-Phase 100 VAC / 50 Hz: 3 W (Setting Resistance VACalue 0 kΩ) Single-Phase 100 VAC / 60 Hz: 4 W (Setting Resistance VACalue 0 kΩ) |
| Maximum Output Power (Continuous Service Rating) |
Single-Phase 100 VAC / 50Hz: 0.8 W (Setting Resistance VACalue Approx. 10 kΩ) Single-Phase 100 VAC / 60Hz: 0.8 W (Setting Resistance VACalue Approx. 7 kΩ) |
|
Speed at Maximum Output Power/ Torque at Maximum Output Power (Motor Shaft, 5 Minutes Service Rating) |
Single-Phase 100 VAC / 50 Hz: 750 r/min / 40 mN·m (Setting Resistance Value0 kΩ) Single-Phase 100 VAC / 60 Hz: 900 r/min / 44 mN·m (Setting Resistance Value0 kΩ) |
|
Speed at Maximum Output Power/ Torque at Maximum Output Power (Motor Shaft, Continuous Service Rating) |
Single-Phase 100 VAC / 50 Hz: 750 r/min / 11 mN·m (設定抵抗値約10 kΩ) Single-Phase 100 VAC / 60 Hz: 900 r/min / 9 mN·m (設定抵抗値約7 kΩ) |
| Permissible Inertia J | Depends on the combination gear head. |
| Capacitor | Capacity: 7 µF、Rated voltage: 200 VAC |
| Power Supply Input Voltage | Single-Phase 100 VAC |
| Power Supply Input Frequency | 50/60 Hz |
| Torque Setting Method | Variable Resistors (Included, 20 kΩ) |
| Mass | 0.8 kg |
