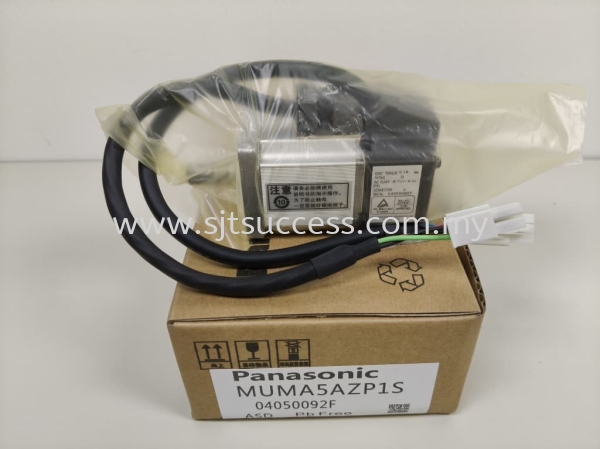

Panasonic MUMA5AZP1S Servo Motor Malaysia
| Item | Specifications |
|---|---|
| Part Number | MUMA5AZP1S |
| Type | Ultra low inertia |
| Protection class | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Rated output (W) | 50 |
| Rated current [Reference value] (A rms) | 1.0 |
| Holding brake | without |
| Mass (kg) | 0.40 |
| Oil seal | without |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 0.16 |
| Momentary Max. peak torque (N ⋅ m) | 0.48 |
| Regenerative brake frequency (times/min) |
Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P2890 (For AC100 V) , DV0P2891 (For AC200 V) |
| Rated rotational speed (r/min) | 3000 |
| Max. rotational speed (r/min) | 5000 |
| Inertia of rotor ( x10-4 kg ⋅ m²) | 0.021 |
| Recommended inertia ratio | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Note) 3. Consult us or a dealer if the load moment of inertia exceeds the specified value. |
| Rotary encoder: specifications | 2500 P/r Incremental |
| Rotary encoder: Resolution | 10000 |
