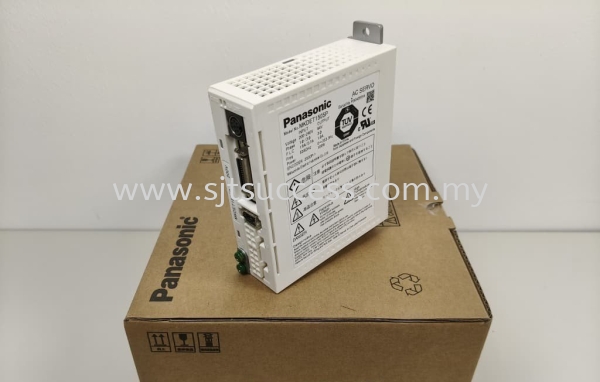

Panasonic MKDET1505P Servo Driver Malaysia

Item	Specifications
Part Number	MKDET1505P
Product details	Ultra compact position control type without the safety function
Family Name	MINAS E
Series	E series
Type	Ultra compact position control type
Frame	K-Frame
Frequency response (kHz)	0.4
Control method	Position control
Safety Function	without
Power device Max. current rating	10A
Current detector current rating	5A
Supply voltage	Single/3-phase 200 V
I/F Classification of type	Pulse train only
Dimensions (W) (Unit: mm)	35
Dimensions (H) (Unit: mm)	140
Dimensions (D) (Unit: mm)	105
Mass (kg)	0.35
Environment	For more details, please refer to the instruction manual.

scroll

Item	Specifications
Input power	Single phase 100 V (+10% -15%) to 115 V (+10% -15%) 50/60 Hz 3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Encoder feedback	2500 P/r (10000 resolution) incremental encoder
Parallel I/O connector: Control signal Input	7 inputs (1) Servo-ON, (2) Alarm clear and other inputs vary depending on the control mode.
Parallel I/O connector: Control signal Output	4 outputs (1) Servo alarm, (2) Alarm, (3) Release signal of external brake and other outputs vary depending on the control mode.
Parallel I/O connector: Pulse signal Input	2 inputs Supports both line driver I/F and open collector I/F.
Parallel I/O connector: Pulse signal Output	4 outputs Feed out the encoder pulse (A, B and Z-phase) in line driver. Z-phase pulse is also feed out in open collector.
Communication function	RS232
Communication function: RS232	1: 1 communication to a host with RS232 interface is enabled.
Regeneration	No built-in regenerative resistor (external resistor only)
Control mode	The following 3 modes are selectable with parameter (1) High-speed position control, (2) Internal velocity control, (3) High-functionality position control
