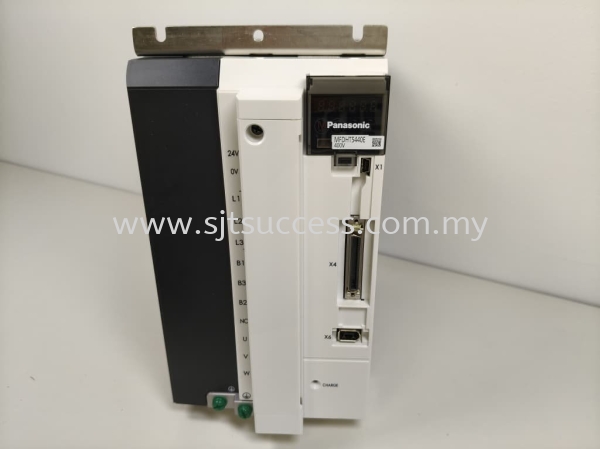

Panasonic MFDHT5440E Servo Driver Malaysia

Item	Specifications
Part Number	MFDHT5440E
Product details	A5E series Position control type without the safety function
Family Name	MINAS A5
Series	A5E series
Type	Position control type
Frame	F-Frame
Frequency response (kHz)	2.3
Control method	Position control
Safety Function	without
Power device Max. current rating	50A
Current detector current rating	40A
Supply voltage	3-phase 400 V
I/F Classification of type	Pulse train only
Dimensions (W) (Unit: mm)	130
Dimensions (H) (Unit: mm)	220
Dimensions (D) (Unit: mm)	214
Mass (kg)	5.2
Environment	For more details, please refer to the instruction manual.

scroll

Item	Specifications
Input power: Main circuit	3-phase 380 V (+10% -15%) to 480 V (+10% -15%) 50/60 Hz
Input power: Control circuit	DC 24V ± 15%
Encoder feedback	20-bit (1048576 resolution) incremental encoder, 5-wire serial
Parallel I/O connector: Control signal Input	General purpose 10 inputs The function of general-purpose input is selected by parameters.
Parallel I/O connector: Control signal Output	General purpose 6 output The function of general-purpose output is selected by parameters.
Parallel I/O connector: Analog signal Output	2 outputs (Analog monitor: 2 output)
Parallel I/O connector: Pulse signal Input	2 inputs (Photo-coupler input, Line receiver input)
Parallel I/O connector: Pulse signal Output	4 outputs (Line driver: 3 output, open collector: 1 output)
Communication function	USB
Communication function: USB	USB interface to connect to computers for parameter setting or status monitoring.
Regeneration	Built-in regenerative resistor (external resistor is also enabled.)
Control mode	Switching among the following 3 mode is enabled, (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command
