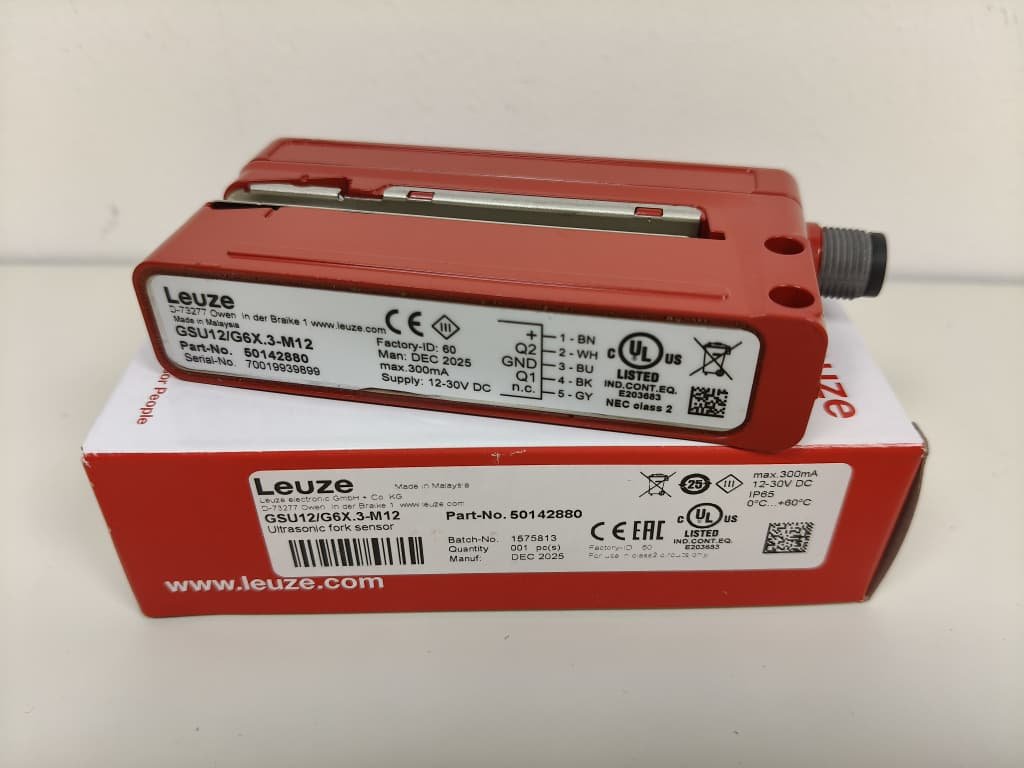

Leuze GSU12/G6X.3-M12 Ultrasonic Fork Sensor Malaysia
|
Series |
12 |
|
Principle of physics |
Ultrasonics |
|
Application |
Detection of non-transparent labels
Detection of transparent labels |
|
Label width, min. |
4 mm |
|
Label gap, min. |
2 mm |
|
Medium |
Transparent and not transparent |
|
Protective circuit |
Polarity reversal protection
Short circuit protected |
|
Supply voltage UB |
12 ... 30 V, DC |
|
Residual ripple |
0 ... 10 %, From UB |
|
Open-circuit current |
0 ... 60 mA, Typical value |
|
Number of digital switching outputs |
2 Piece(s) |
|
Type |
Digital switching output |
|
Voltage type |
DC |
|
Switching current, max. |
100 mA |
|
Switching voltage |
high: ≥(UB-2V)
low: ≤ 2 V |
|
Load capacity |
0.01 µF |
|
Switching element |
Transistor, Push-pull |
|
Switching principle |
NPN light switching (switching in the gap), PNP dark switching (switching on the label) |
|
Switching element |
Transistor, Push-pull |
|
Switching principle |
PNP light switching (switching in the gap), NPN dark switching (switching on the label) |
|
Switching frequency |
1,750 Hz |
|
Response time |
0.24 ms |
|
Readiness delay |
300 ms |
|
Max. conveyor speed during teach-in |
50 m/min |
|
Number of connections |
1 Piece(s) |
|
Function |
Signal OUT
Voltage supply |
|
Type of connection |
Connector |
|
Thread size |
M12 |
|
Type |
Male |
|
Material |
Metal |
|
No. of pins |
5 -pin |
|
Encoding |
A-coded |
|
Plug outlet |
Horizontal (parallel to belt movement) |
|
Design |
Fork |
|
Mouth width |
4 mm |
|
Mouth depth |
80 mm |
|
Dimension (W x H x L) |
22 mm x 46.9 mm x 96 mm |
|
Housing material |
Metal |
|
Metal housing |
Diecast zinc, with powder coating |
|
Net weight |
270 g |
|
Housing color |
Red |
|
Type of fastening |
Mounting thread
Through-hole mounting |
|
Type of display |
LED |
|
Number of LEDs |
3 Piece(s) |
|
Operational controls |
Teach button |
|
Function of the operational control |
Dynamic teach on label carrier and label |
