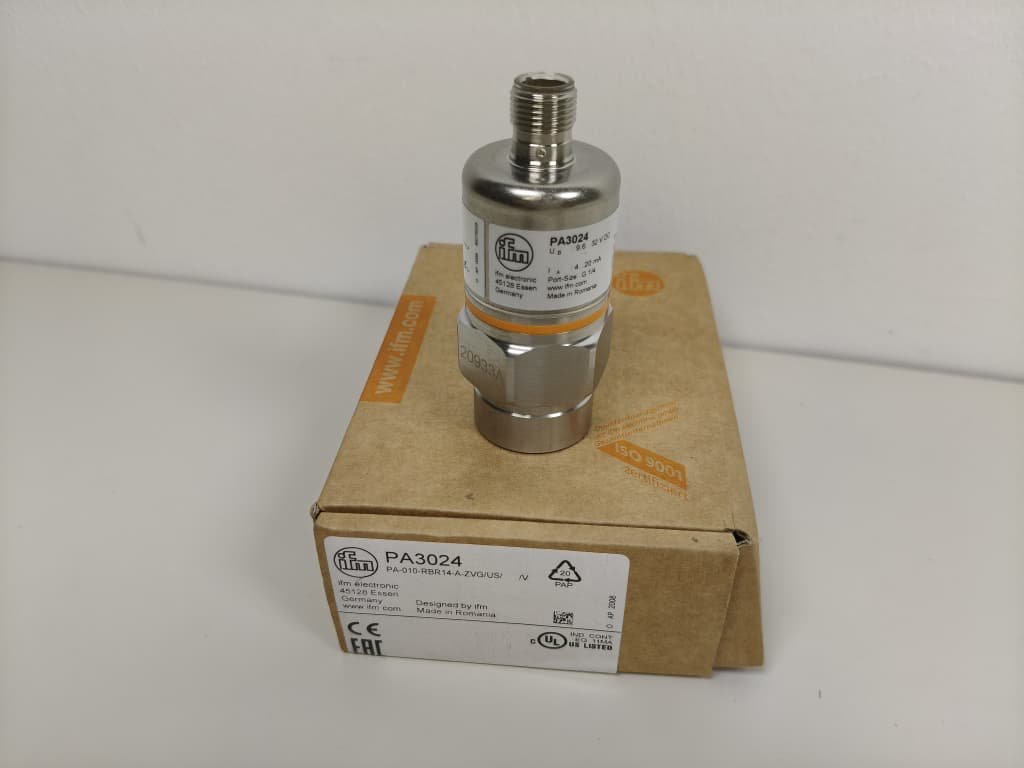

IFM PA3024 Pressure Sensor Malaysia
- Precise linear 4...20 mA output signal
- High repeatability and low linearity error
- With long-term stability thanks to high overload protection
- Robust stainless steel housing for use in harsh industrial environments
-
Wide operating temperature range
Product characteristics
Number of inputs and outputs Number of analogue outputs: 1 Measuring range 0...10 bar 0...145 psi 0...1000 kPa 0...1 MPa Process connection threaded connection G 1/4 internal thread Application
Special feature Gold-plated contacts Application for industrial applications; for railway applications Media liquids and gases Medium temperature[°C] -25...90; (on request: -40...90 °C) Min. burst pressure 150 bar 2175 psi 15 MPa Pressure rating 75 bar 1088 psi 7.5 MPa Type of pressure relative pressure Electrical data
Operating voltage[V] 9.6...32 DC Min. insulation resistance[MΩ] 100; (500 V DC) Protection class III Reverse polarity protection yes Inputs / outputs
Number of inputs and outputs Number of analogue outputs: 1 Outputs
Total number of outputs 1 Output signal analogue signal Number of analogue outputs 1 Analogue current output[mA] 4...20 Max. load[Ω] 720; (Ub = 24 V; (Ub - 9,6 V) / 20 mA) Overload protection yes
