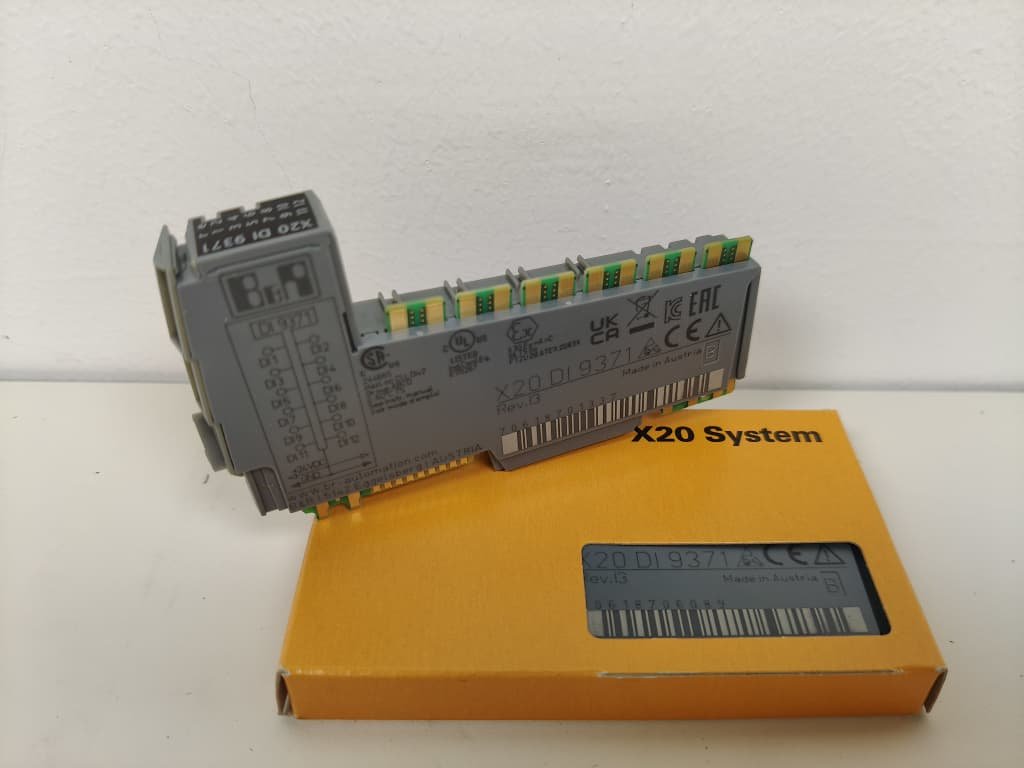

B&R X20DI9371 Digital Input Malaysia
Short description
|
I/O module |
12 digital inputs 24 VDC for 1-wire connections |
General information
|
B&R ID code |
0x1B95 |
|
Status indicators |
I/O function per channel, operating state, module status |
|
Diagnostics |
|
|
Module run/error |
Yes, using LED status indicator and software |
|
Power consumption |
|
|
Bus |
0.18 W |
|
Internal I/O |
1.75 W |
|
Additional power dissipation caused by actuators (resistive) [W] |
- |
|
Certifications |
|
|
CE |
Yes |
|
UKCA |
Yes |
|
CRA (Cyber Resilience Act) |
In preparation |
|
ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X |
|
UL |
cULus E115267
Industrial control equipment |
|
HazLoc |
cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5 |
|
DNV |
Temperature: B(0 to 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck) |
|
CCS |
Yes |
|
LR |
ENV1 |
|
KR |
Yes |
|
ABS |
Yes |
|
BV |
EC33B
Temperature: 5 - 55°C
Vibration: 4 g
EMC: Bridge and open deck |
|
KC |
Yes |
Digital inputs
|
Nominal voltage |
24 VDC |
|
Input characteristics per EN 61131-2 |
Type 1 |
|
Input voltage |
24 VDC -15% / +20% |
|
Input current at 24 VDC |
Typ. 3.75 mA |
|
Input circuit |
Sink |
|
Input filter |
|
|
Hardware |
≤100 μs |
|
Software |
Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments |
|
Connection type |
1-wire connections |
|
Input resistance |
Typ. 6.4 kΩ |
|
Switching threshold |
|
|
Low |
<5 VDC |
|
High |
>15 VDC |
|
Insulation voltage between channel and bus |
500 Veff |
Electrical properties
|
Electrical isolation |
Channel isolated from bus
Channel not isolated from channel |
Operating conditions
|
Mounting orientation |
|
|
Horizontal |
Yes |
|
Vertical |
Yes |
|
Installation elevation above sea level |
|
|
0 to 2000 m |
No limitation |
|
>2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
|
Degree of protection per EN 60529 |
IP20 |
Ambient conditions
|
Temperature |
|
|
Operation |
|
|
Horizontal mounting orientation |
-25 to 60°C |
|
Vertical mounting orientation |
-25 to 50°C |
|
Derating |
See section ''Derating''. |
|
Storage |
-40 to 85°C |
|
Transport |
-40 to 85°C |
|
Relative humidity |
|
|
Operation |
5 to 95%, non-condensing |
|
Storage |
5 to 95%, non-condensing |
|
Transport |
5 to 95%, non-condensing |
Mechanical properties
|
Note |
Order 1x terminal block X20TB12 separately.
Order 1x bus module X20BM11 separately. |
|
Pitch |
12.5+0.2mm |
