Bender LINETRAXX® RCMA420-D-1 Residual Current Monitor Malaysia
Features
- AC/DC sensitive residual current monitor Type B acc. to IEC 62020 and IEC/TR 60755
- r.m.s. value measurement (AC+DC)
- Two separately adjustable response values 10…500 mA
- Frequency range 0…2000 Hz
- Start-up delay, response delay and delay on release
- Digital measured value display via LC display
- Measured value memory for operating value
- CT connection monitoring
- LEDs: Power On, Alarm 1, Alarm 2
- Internal/external test/reset button
- Two separate alarm relays (one changeover contact each)
- N/O or N/C operation and fault memory behaviour selectable
- Continuous self monitoring
- Multi-functional LC display
- Password protection for device settings
- Sealable transparent cover
- Two-module enclosure (36 mm)
- RoHS compliant
-
Push-wire terminal (two terminals per connection)
Type Response range IΔn Frequency range Supply voltage US* Art. No.** RCMA420-D-1 10…500 mA 0…2000 Hz DC 9,6…94 V /
AC 16…72 V, 42…460 HzB74043001

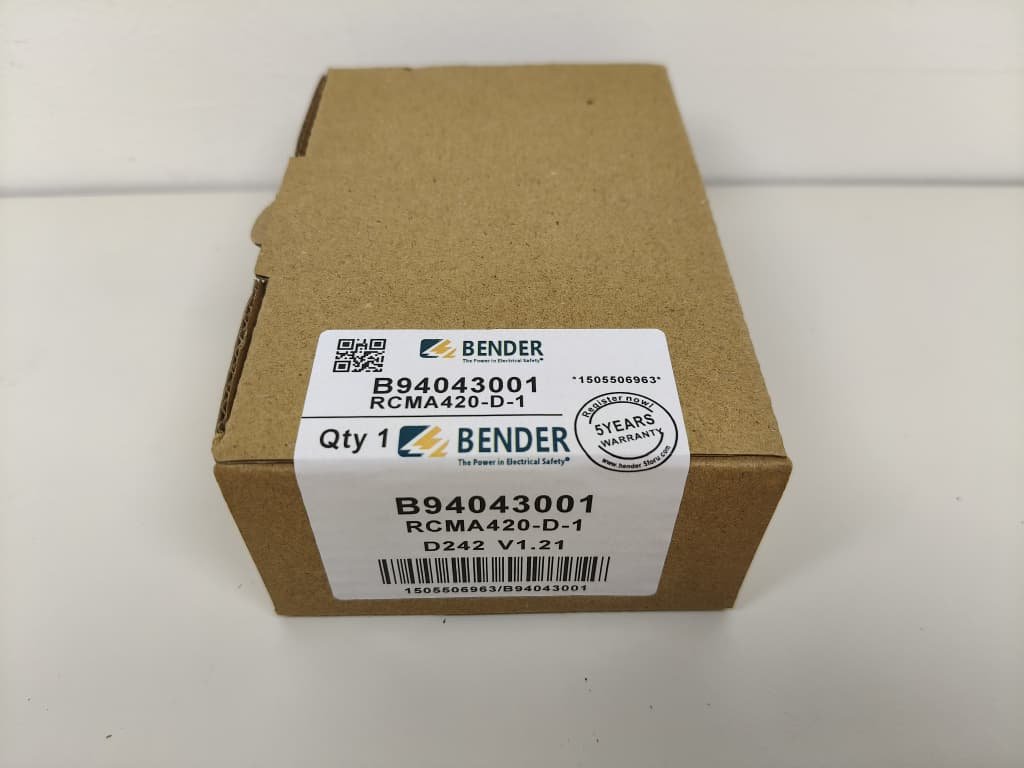

B94043001
