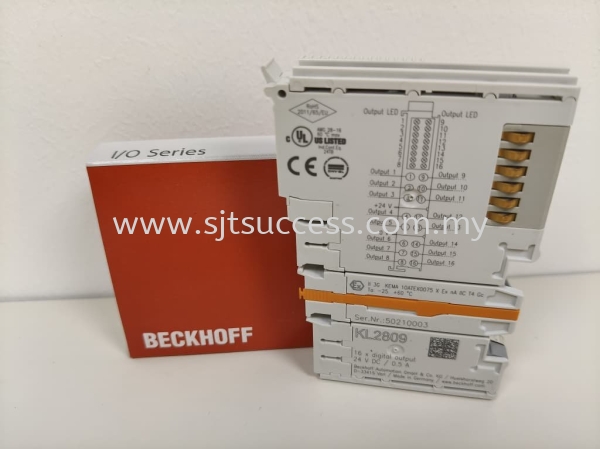

Beckhoff KL2809 Bus Terminal Malaysia
| Technical data | KL2809 |
|---|---|
| Connection technology | 1-wire |
| Number of outputs | 16 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 0.5 A (short-circuit proof) per channel |
| Short-circuit current | < 2 A |
| Breaking energy | < 150 mJ/channel |
| Reverse voltage protection | yes |
| Electrical isolation | 500 V (K-bus/field potential) |
| Current consumption power contacts | typ. 35 mA + load |
| Current consumption K-bus | typ. 35 mA |
| Bit width in the process image | 16 outputs |
| Configuration | no address or configuration setting |
| Weight | approx. 70 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable (see documentation) |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV |
| Ex marking |
ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
