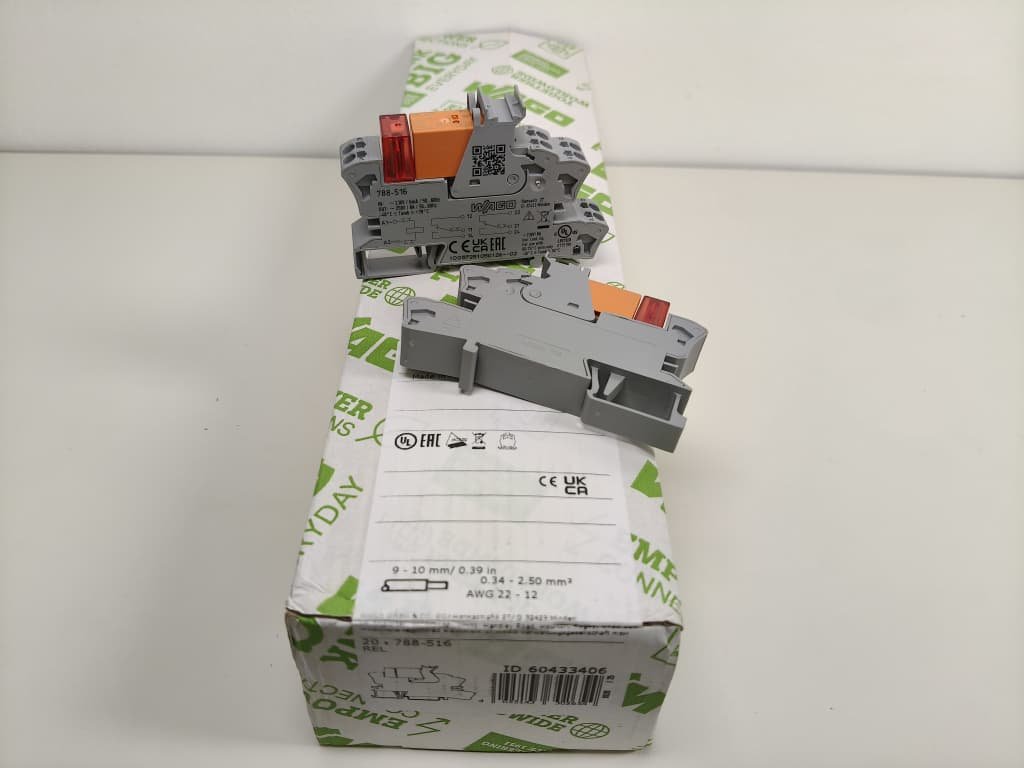

Wago 788-516 Relay Malaysia
Technical data
|
Nominal input voltage UN |
230 VAC |
|
Input voltage range |
±10 % |
|
Nominal input current at UN |
4 mA |
|
Number of changeover/switchover contacts |
2 |
|
Contact material (relay) |
AgNi 90/10 |
|
Limiting continuous current |
8 A |
|
Inrush current (resistive) max. |
(AC) 15 A / 4 s |
|
Switching Voltage, Max. |
250 VAC |
|
Switching power (resistive) max. |
AC 2000 VA; DC (see load limit curve) |
|
Switching capacity |
AC-15: 3 A / 250 VAC; DC-13: 2 A / 24 VDC |
|
Recommended minimum load |
12 V / 10 mA |
|
Pull-in time (typ.) |
10ms |
|
Drop-out time (typ.) |
35ms |
|
Bounce time (typ.) |
10ms |
|
Electrical life (NO; resistive load; 23 °C) |
10 x 10³ switching operations |
|
Mechanical life |
30 x 10⁶ switching operations |
|
Switching frequency with/without load (max.) |
6 min-1 / 1200 min-1 |
