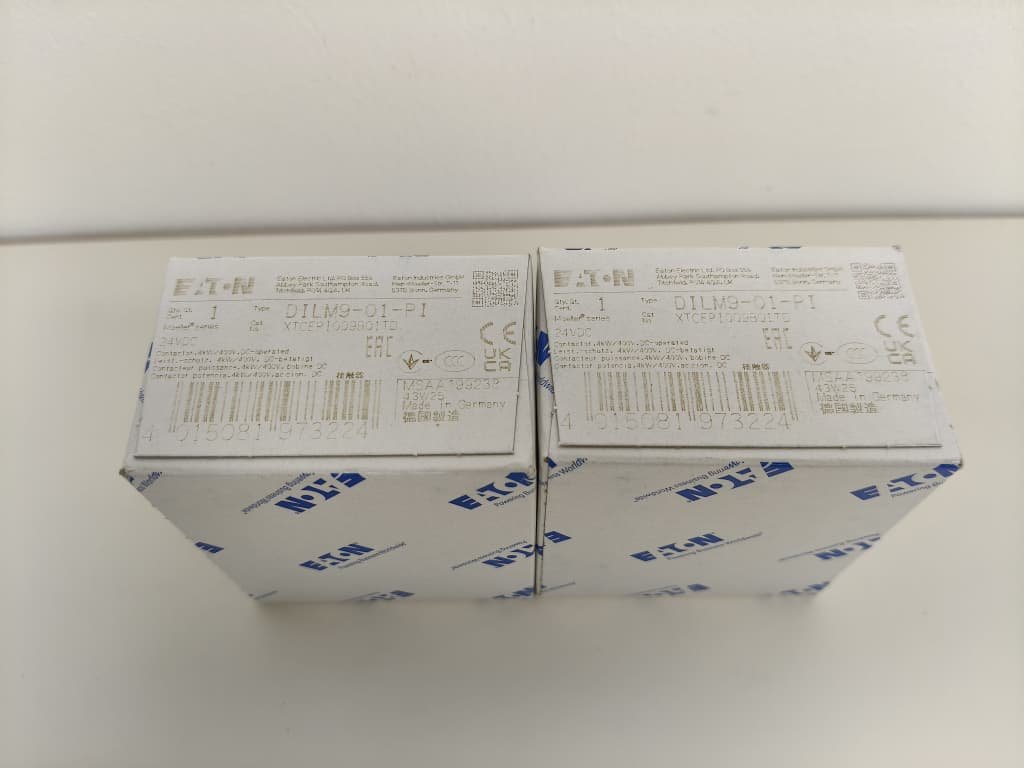

Eaton DILM9-01-PI DILM Contactor Malaysia
General specifications
| Product Name |
Eaton Moeller® series DILM contactor
|
| Catalog Number |
199238
|
| Model Code |
DILM9-01(24VDC)-PI
|
| EAN |
4015081973224
|
| Product Length/Depth |
75 mm
|
| Product Height |
68 mm
|
| Product Width |
45 mm
|
| Product Weight |
0.285 kg
|
| Certifications |
IEC/EN 60947
VDE 0660 UL Listed CSA certified UL Category Control No.: NLDX CE marking UL File No.: E29096 CSA Class No.: 2411-03, 3211-04 CSA File No.: 012528 |
| Catalog Notes |
Also tested according to AC-3e.
|
| Product Type |
Contactor
|
Features Functions
| Fitted with: |
Mirror contact
Built-in suppressor circuit |
| Number of poles |
Three-pole
|
General
| Application |
Contactors for Motors
|
| Degree of protection |
IP20
|
| Frame size |
FS1
|
| Lifespan, mechanical |
10,000,000 Operations (DC operated)
|
| Connection |
Push in terminals
|
| Operating frequency |
9000 mechanical Operations/h (DC operated)
|
| Overvoltage category |
III
|
| Pollution degree |
3
|
| Product category |
Contactors
|
| Protection |
Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)
|
| Rated impulse withstand voltage (Uimp) |
6000 V AC
|
| Resistance per pole |
4.6 mΩ
|
| Suitable for |
Also motors with efficiency class IE3
|
| Utilization category |
AC-4: Normal AC induction motors: starting, plugging, reversing, inching
AC-3: Normal AC induction motors: starting, switch off during running AC-1: Non-inductive or slightly inductive loads, resistance furnaces |
| Voltage type |
DC
|
