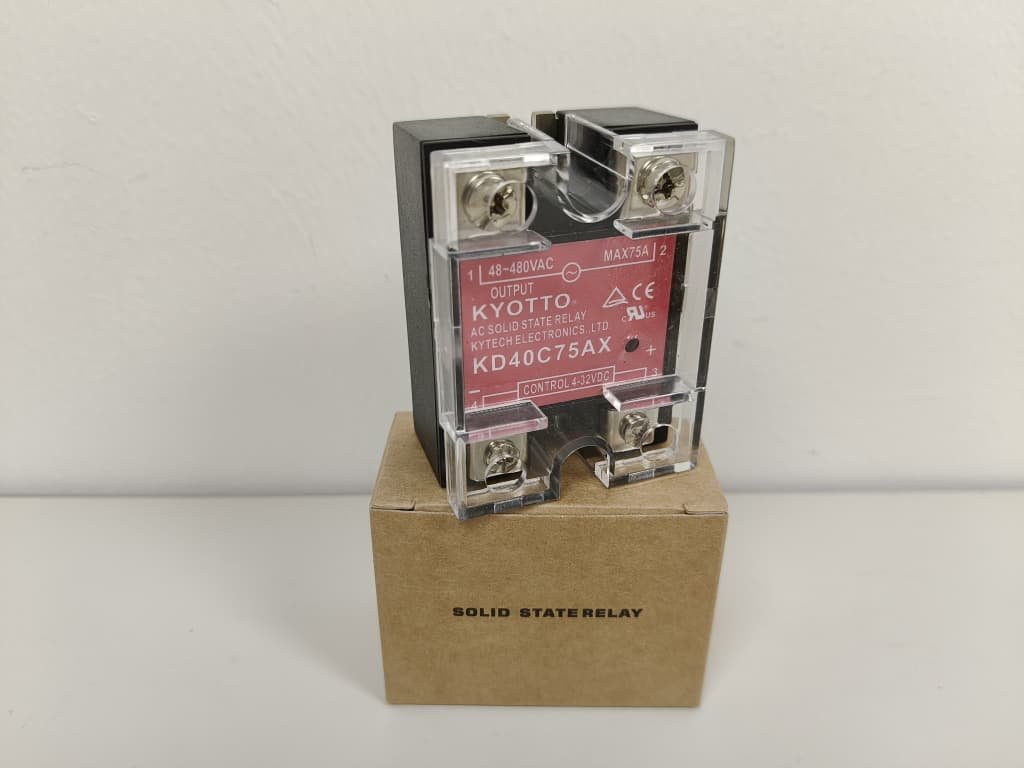

Kyotto KD40C75AX Solid State Relay Malaysia
|
MODEL
NO. |
CONTROL VOLTAGE
RANGE |
MUST TURN
OFF VOLTAGE |
INPUT
IMPEDANCE |
MAX LOAD
CURRENT |
LOAD VOLTAGE
RANGE |
MIN BLOCKING
VOLTAGE |
MAX OFF-STATE
LEAKAGE |
FREQUENCY
RANGE |
MAX 1-CYCLE
PEAK SURGE |
|
KD40C75AX
|
4 TO 32 VDC
|
MAX 1.0 VDC
|
1.5 Kohm
|
75A
|
48-480VAC
|
1200VAC
|
LESS15mA
|
47~70Hz
|
750A
|
|
MODEL
NO. |
MAX OFF
STATE dv/dt |
MAX ON-STATE
VOLTAGE DROP |
ISOLATE
IMPEDENCE |
DIELECTRIC STRENGTH
INPUT-OUTPUT |
DIELECTRIC STRENGTH
INPUT,OUTPUT-CASE |
TURN ON
TIME |
TURN OFF
TIME |
CAPACITANCE
IN-OUT |
WEIGHT (g)
|
|
KD40C75AX
|
200
 SEC |
2.0VACrms
|
 ohm |
4000 VACrms
|
2500 VAC (rms)
|
LESS 2 mSec
|
LESS 1/2 AC CYCLE
|
LESS 15 PF
|
100 g
|
