Murr Elektronik 56623 Cube67 I/O Extension Module Malaysia

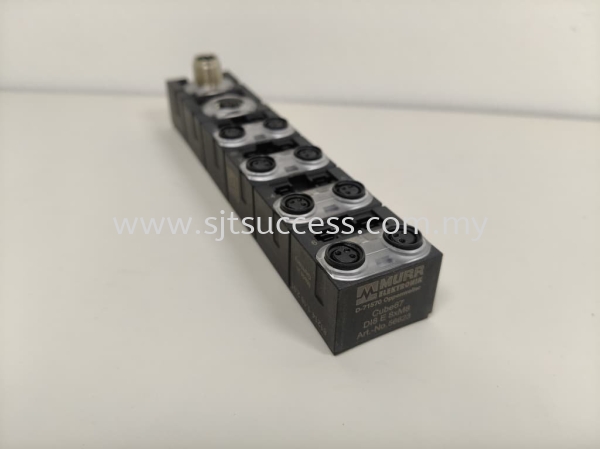

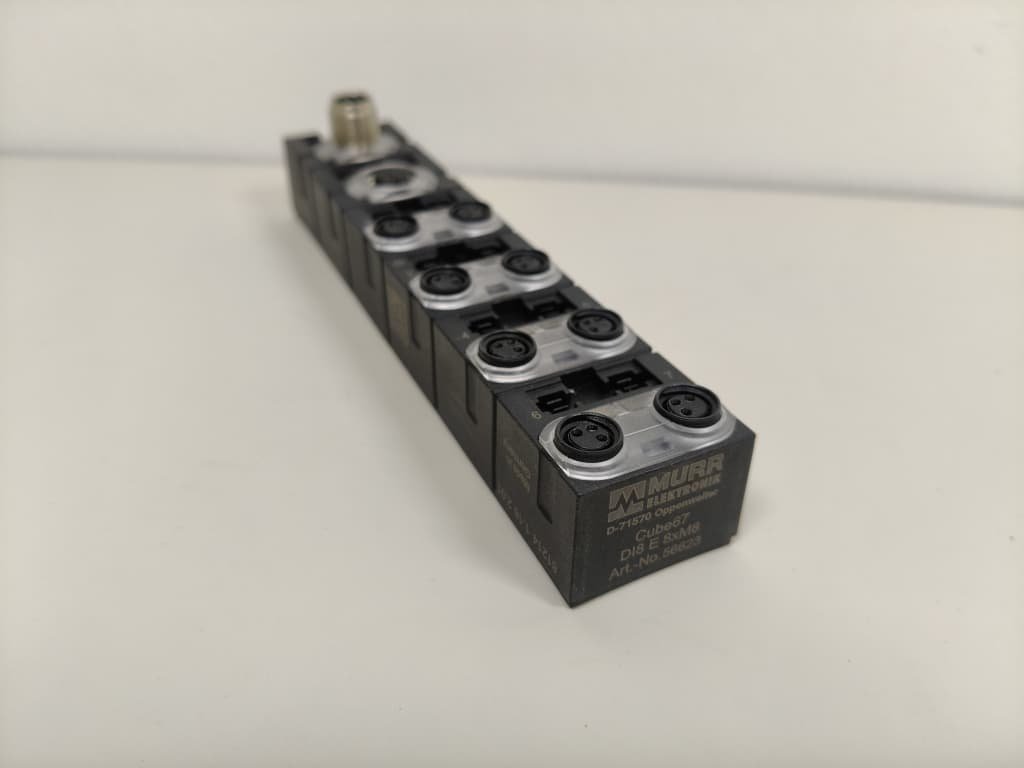

CUBE67 I/O EXTENSION MODULE
8 digital inputs
| Art.No.: | 56623 |
| Weight: | 0.199 kg |
| Country of origin: | CZ |
| Model designation: |
Cube67 DI8 E 8xM8 |
Electrical data | Supply
| Norm operating voltage | IEC/EN 61131-2 |
|---|---|
| Operating voltage US DC | 24 V |
| Total current US max. | 4 A |
| Total current UA max. | 4 A |
| Current consumption max. | 30 mA |
Electrical data | Input
| Sensor current US per input max. | 0,2 A |
|---|---|
| Short-circuit protected | Yes |
| Overload resistant | Yes |
| filter time | 1 ms |
| Type input | for 3-wire sensors or mechanical switches, PNP |
Diagnostics
| Short circuit diagnosis | Yes |
|---|---|
| Overload diagnosis | Yes |
| Diagnostic | No voltage, Under voltage |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| LED display | Ethernet connection/data traffic |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
|---|
Mechanical data | Mounting data
| Height | 151 mm |
|---|---|
| Width | 30 mm |
| Depth | 34,5 mm |
| Suitable for mounting type | 2-hole screw mounting |
Environmental characteristics | Climatic
| Operating temperature min. | 0 °C |
|---|---|
| Operating temperature max. | 55 °C |
| Ambient temperature (storage, transport) | -20 °C … 75 °C |
