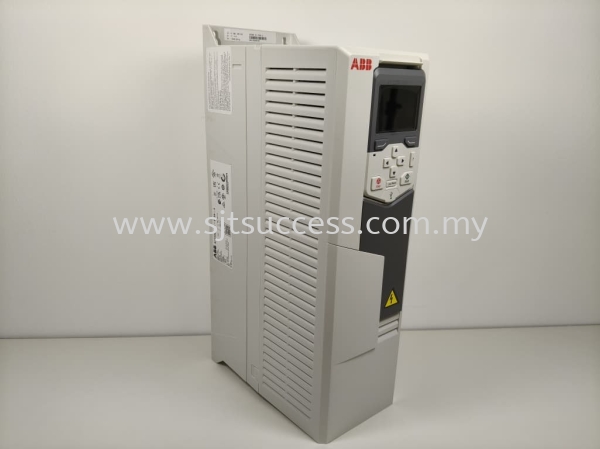

ABB ACS580-01-018A-4 LV AC General Purpose Wall-Mounted Drive Malaysia

Complete Drive Module Efficiency (IEC61800-9-2):

Operating Point Frequency / Current	Absolute Loss	Efficiency	Relative Loss
0/25 %	91 W	87.2 %	0.8 %
0/50 %	114 W	91.4 %	1.0 %
0/100 %	189 W	92.7 %	1.6 %
50/25 %	96 W	93.1 %	0.8 %
50/50 %	124 W	95.3 %	1.1 %
50/100 %	210 W	96.0 %	1.8 %
90/50 %	134 W	97.1 %	1.1 %
90/100 %	240 W	97.4 %	2.0 %

Number of Phases:

						3-phase

Degree of Protection:

						IP21

Enclosure Type NEMA:

						Type1

Altitude:

						1000 m

Operating Humidity (RHamb):

						5 ... 95

Sound dB (A):

						64 dB(A)

Multiple Battery Information:

						Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g

Frequency (f):

						47.5 ... 63 Hz

Frame Size:

R2

Input Voltage (Uin):

						380 ... 480 V

Mounting Type:

						Wall-mounted

Communication Protocol:

CAN

						DeviceNet

						EtherNet/IP

						MODBUS

						Other Bus Systems

						PROFIBUS

						PROFINET IO

						TCP/IP

Number of Hardware Interfaces:

						Industrial Ethernet 0

						Other 2

						Parallel 2

						PROFINET 0

						RS-232 0

						RS-422 0

						RS-485 1

						Serial TTY 0

						USB 1

Includes:

						Control unit

						PC connection

Analog Inputs:

2

Analog Outputs:

2

Number of Digital In/Outputs:

						6 / 3

Output Current, Normal Use (In):

						17 A

Output Current, Light-Overload Use (ILD):

						16.2 A

Output Current, Heavy-Duty Use (IHD):

						12.6 A

Output Power, Normal Use (Pn):

						7.5 kW

Output Power, Light-Overload Use (PLD):

						7.5 kW

Output Power, Heavy-Duty Use (PHD):

						5.5 kW

Power Consumption (@Pcons):

						240 W

Apparent Power Output:

						12 kV·A

Efficiency Level:

IE2

Standby Loss:

						15 W

Temperature Rating:

						Maximum 40 °C

						Minimum -15 °C
