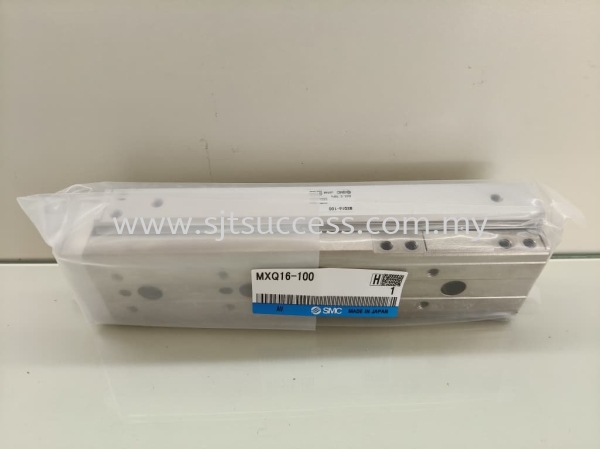

SMC MXQ16-100 Cylinder Malaysia

The MXQ precision slide is ideal for applications requiring closely held parallelism and perpendicular specifications. The table and bearing guide are integrated into one precisely machined part made of hardened stainless steel. This minimizes tolerance stack-up associated with multiple part assemblies, and affords height tolerances of +/-0.05mm. The bearing is a recirculating linear guide in a stainless steel housing.

Air slide table w/built-in guide rail
Bore size *: 6, 8, 12, 16, 20, 25
Standard or symetric styles
Adjuster options: rubber stopper, shock absorber, metal stopper
Auto switch capable

SMC Part Description:tab 4

CYL, SLIDE TABLE

SMC Products Line:tab 5

ACTUATOR

SMC Family:tab 1

MXQ GUIDED CYLINDER

SMC Family Code:tab 11

GE

SMC Class Description:tab 8

16MM MXQ DBL-ACT AUTO-SW

Weight:tab 9

3.15388 lb
