Specifications:

Key information
Product range	TeSys Deca

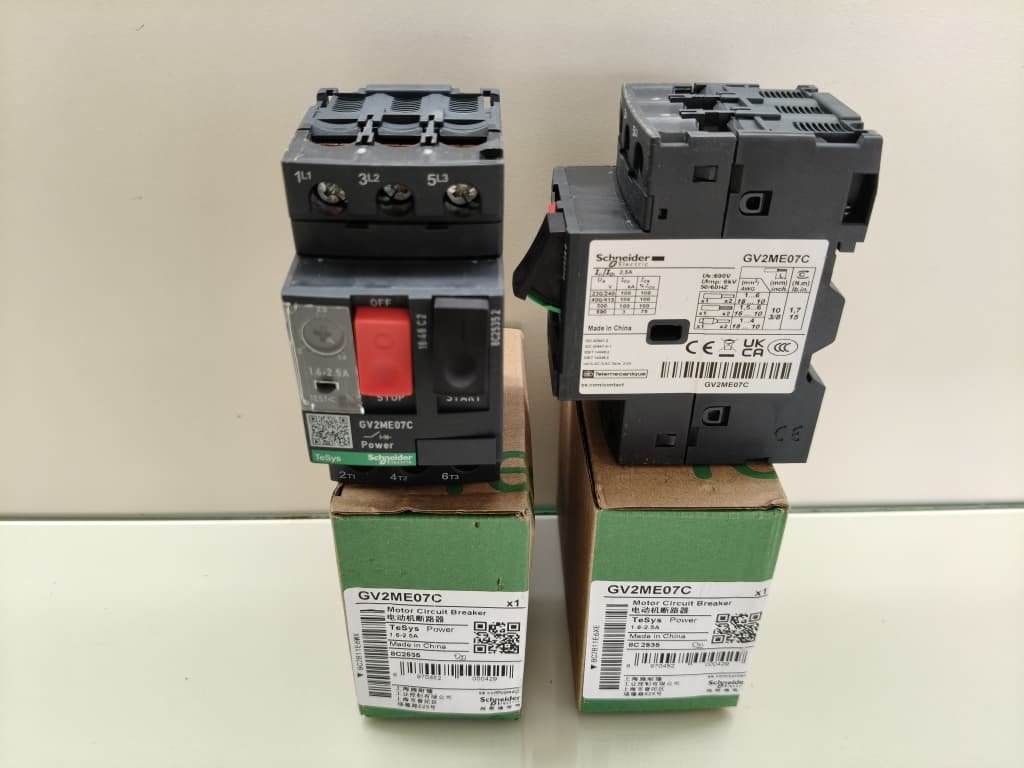

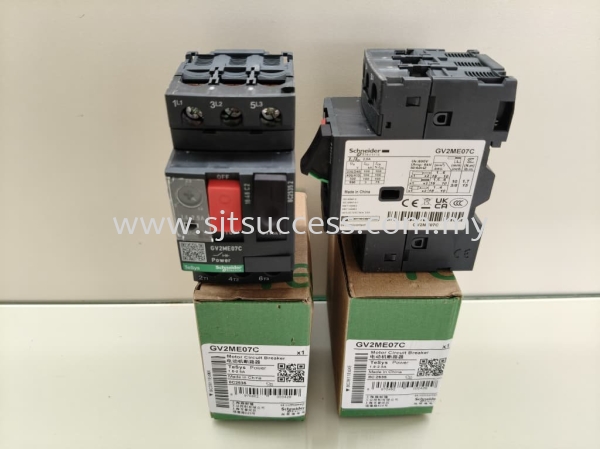

Product Name	TeSys GV2
Short name of the product	GV2ME
Product Type:	Circuit breaker
Application of the product	Motor protection
Extreme number	3P

Additional information
Grid type	AC
Network frequency	50/60 Hz in accordance with IEC 60947-2
Control type	(push-type) button
Installation method:	Rail mounting
Mounting location	Horizontally vertical
Motor Power (kW)	0.37 kW in... On 230 V AC 50/60 Hz 0.75 kW in... On 400 V AC 50/60 Hz 0.75 kW in... On 415 V AC 50/60 Hz 1.1 kW in... On 440 V AC 50/60 Hz
Current Rating [In]	2.5 A
Tripper type	Thermomagnetic
Electromagnetic trip current	39 A
Thermal overload protection setting range	1.6… 2.5 A
Isolation function	Applicable Compliant with IEC 60947-1 § 7-1-6
Mechanical impact resistance	0.5 J IK04
Missing phase sensitivity	Yes complies with IEC 60947-4-1 § 7-2-1-5-2
Use categories	AC class according to IEC 60947-2 AC-3 according to IEC 60947-4-1 AC-3e according to IEC 60947-4-1
Rated Operating Voltage [UE]	690 V AC 50/60 Hz in accordance with IEC 60947-2
Rated Insulation Voltage [UI]	690 V AC 50/60 Hz in accordance with IEC 60947-2 600 V AC 50/60 Hz in accordance with UL 508 600 V AC 50/60 Hz in accordance with CSA C22.2 No 14
Rated Shock Withstand Voltage [UIMP]	6 kV in accordance with IEC 947-2
Power consumption per pole	2.5 W
Mechanical life	100000 times
Electrical life	100000 times for AC-3 in... On 440 V In 100000 Times for AC-3e in... On 440 V In
Maximum number of conversions	25 cyc/h
Rated load	Continuous in accordance with IEC 60947-4-1
Wiring capability	Power Circuit: Screw Press-Fit Terminals 2 1... 6 mm² Cable Type: Single Strand Hard Wire without Terminal Blocks Power Circuit: Screw Press-In Terminals 2 1.5... 6 mm² Cable Type: Flexible Wire Without Terminal Blocks Power Circuit: Screw Press-In Terminals 2 1... 4 mm² Cable Type: Flexible Wire with Terminal Blocks
Fastening torque	1.7 N.m Via Screw Press-Fit Terminals Cable 1... 4 mm² 1.7 N.m Via Screw Press-Fit Terminals Cable 1... 6 mm² 1.7 N.m Via Screw Press-Fit Terminals Cable 1.5... 6 mm²
Ability to divide	ICU: >= 100 kA in... On 230/240 V AC 50/60 Hz in accordance with IEC 60947-2 ICU: >= 100 kA in... On 400/415 V AC 50/60 Hz in accordance with IEC 60947-2 ICU: >= 100 kA in... On 440 V AC 50/60 Hz in accordance with IEC 60947-2 ICU: >= 100 kA in... On 500 V AC 50/60 Hz in accordance with IEC 60947-2 ICU: 3 kA in... On 690 V AC 50/60 Hz in accordance with IEC 60947-2
Rated Short Circuit Breaking Capability [ICS]	75 % in... On 690 V AC 50/60 Hz in accordance with IEC 60947-2
height	89 mm
Width	44.5 mm
Depth	78.2 mm
Product weight	0.26 kg

Specifications:
