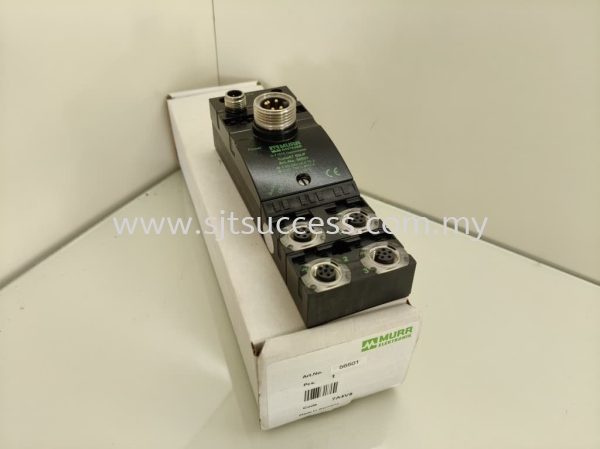

Murr Elektronik 56501 Cube67 Bus Nodes Malaysia
MURR ELEKTRONIK MALAYSIA 56501 MALAYSIA 56501 PRICE MURR ELEKTRONIK CUBE67 MURR ELEKTRONIK BUS NODES
Technical Data
Electrical data | Supply
| Operating voltage DC | 24 V |
|---|---|
| Total current US max. | 8 A |
| Total current UA max. | 8 A |
| Current consumption max. | 120 mA |
Industrial communication | Bus data
| Address setting type | Rotary switch |
|---|---|
| Address range min. | 0 |
| Address range max. | 99 |
Diagnostics
| Short circuit diagnosis | Yes |
|---|---|
| Overload diagnosis | Yes |
| Diagnostic | No voltage, Under voltage |
| Diagnostic via BUS | per module and channel |
| Diagnostic via LED | per module and channel |
| LED display | Ethernet connection/data traffic |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
|---|
Mechanical data
| Number extension modules max. | 16 |
|---|
Mechanical data | Mounting data
| Height | 151 mm |
|---|---|
| Width | 50 mm |
| Depth | 50,3 mm |
| Suitable for mounting type | 2-hole screw mounting |
Environmental characteristics | Climatic
| Operating temperature min. | 0 °C |
|---|---|
| Operating temperature max. | 55 °C |
| Ambient temperature (storage, transport) | -20 °C … 75 °C |
