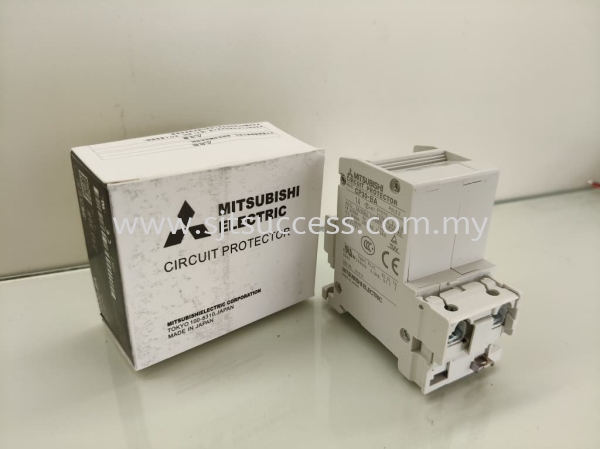

Mitsubishi CP30-BA Circuit Protectors Malaysia
| Frame Size (A) | 30 | |
| Model Number | CP30-BA | |
| Stocked Item | S | |
| Rated Current in Amps at Ambient Temperature 40°C (IEC 30°C) | 0.1 0.25 0.3 0.5 1 2 3 5 7 10 15 20 30 | |
| Number of Poles | 1 | |
| Rated Voltage | AC (V) | 250 |
| DC (V) | 65 | |
|
UL1077 CSA C22.2 No.235 |
AC | 2.5kA at 250V |
| DC | 2.5kA at 65V | |
|
IEC 60934 EN 60934 GB 17701 Icn |
Rated Insulation Voltage AC (V) | 250 |
| AC | 2.5kA at 230V | |
| DC | 2.5kA at 60V | |
| JIS C 4610 Icn | Rated Insulation Voltage AC (V) | 250 |
| AC | 2.5kA at 230V | |
| DC | 2.5kA at 60V | |
|
IEC 60947-2 EN 60947-2 JIS C 8201-2-1 Ann.1 Icu/Ics |
Rated Insulation Voltage AC (V) | 250 |
| AC | 2.5/2.5kA at 230V | |
| DC | 2.5/2.5kA at 60V | |
| Rated Impulse Withstand Voltage | - | |
| Reverse Connection | - | |
|
Overall Dimensions (mm) |
Width | 17.5 |
| Height | 73 | |
| Depth | 65 | |
| Depth Including Knob | 40 (T40) | |
