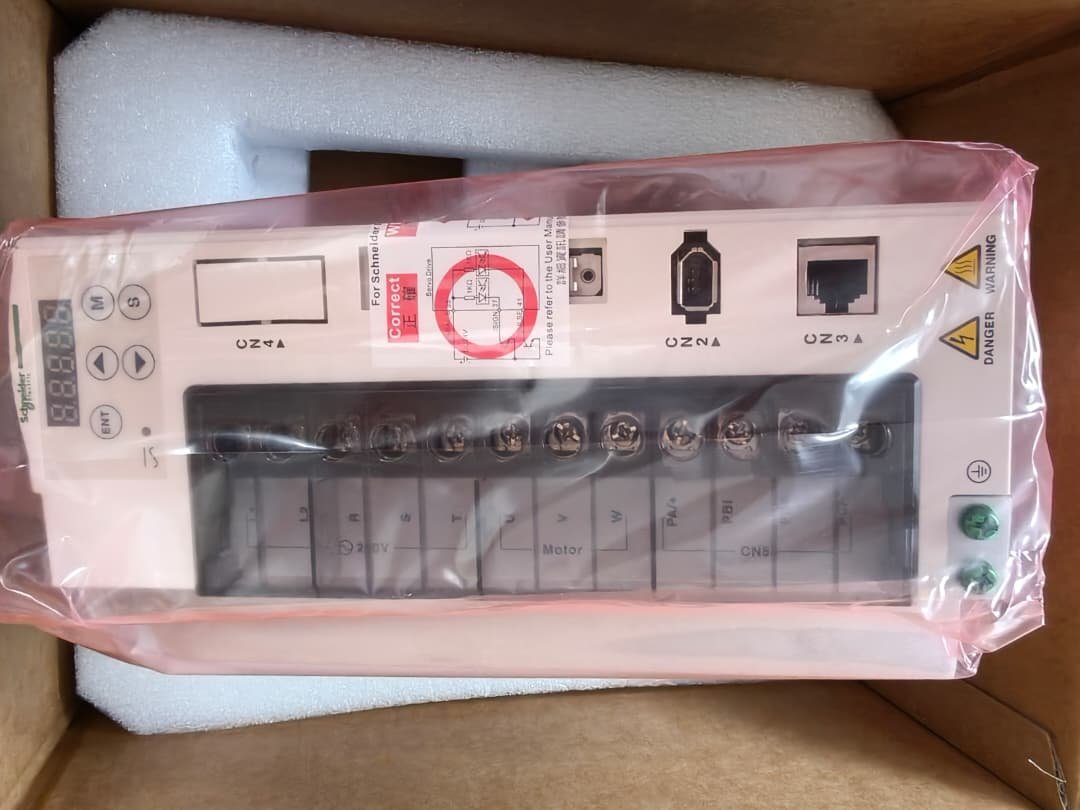

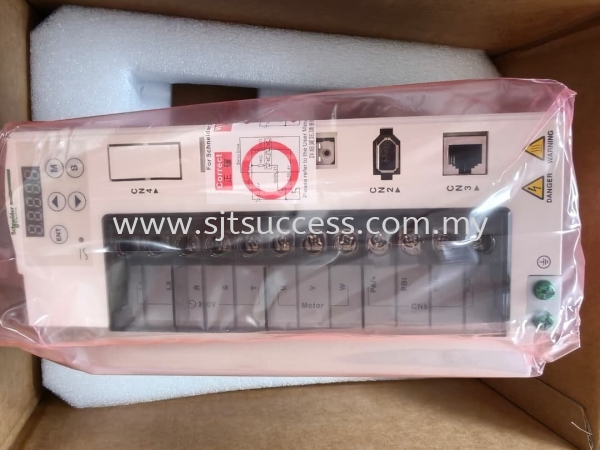

- Schneider LXM23DU20M3X Lexium 23 IO Servo Drive 2 Kw Malaysia
Schneider LXM23DU20M3X Lexium 23 IO Servo Drive 2 Kw Malaysia
SCHNEIDER MALAYSIA SCHNEIDER LEXIUM MALAYSIA LXM23DU20M3X MALAYSIA LXM23DU20M3X PRICE SCHNEIDER LXM23
Specifications
| Range of product | Lexium 23 Plus |
|---|---|
| Product or component type | Motion servo drive |
| Device short name | LXM23 |
| Format of the drive | Book |
|---|---|
| Network number of phases | 3 phases |
| [Us] rated supply voltage | 220 V 3 phases (tolerance: - 20...15 %) |
| Supply voltage limits | 170…255 V 3 phases |
| Supply frequency | 50/60 Hz - 5...5 % |
| Network frequency limits | 47.5…63 Hz |
| Continuous output current | 13.4 A |
| Continuous power | 2000 W at 220 V |
| Nominal power | 2 kW at 220 V |
| Maximum leakage current | 3.5 mA |
| Output voltage | <= power supply voltage |
| Electrical isolation | Between power and control |
| Type of cable | Twisted shielded pairs cable (single or double) (temperature: 0…55 °C) |
| Electrical connection |
Terminal, clamping capacity: 1.3 mm², AWG 16 (L1-L2) Terminal, clamping capacity: 2.1 mm², AWG 14 (R, S, T) Terminal, clamping capacity: 2.1 mm², AWG 14 (PA/+, PBe) Terminal, clamping capacity: 2.1 mm²/3.3 mm², AWG 14...AWG 12 (U, V, W) |
| Tightening torque | PE (ground): 1.4 N.m |
| Discrete input number | 8 programmable discrete input(s) |
| Discrete input type | Programmable (CN1 terminals) |
| Discrete input voltage | 12...24 V DC for logic |
| Discrete input logic | Positive or negative (CN1) |
| Discrete output number | 5 |
| Discrete output type | Logic output(s) (CN1)12...24 V DC |
| Discrete output voltage | 12...24 V DC |
| Discrete output logic | Positive or negative (CN1) |
| Analogue input number | 2 |
| Absolute accuracy error | 0.01 % |
| Analogue input type |
V_REF voltage analog input: - 10...10 V, impedance: 10 kOhm T_REF voltage analog input: - 10...10 V, impedance: 10 kOhm |
| Control signal type | Servo motor encoder feedback |
| Protection type |
Against reverse polarity: inputs signal Against short-circuits: outputs signal Overcurrent: motor Overvoltage: motor Undervoltage: motor Overheating: motor Overload: motor Overspeed: motor Abnormal pulse control command: drive |
| Communication interface | Modbus, integrated |
| Connector type | RJ45 (CN3) for Modbus |
| Method of access | Slave |
| Physical interface | 2-wire RS485 multidrop for Modbus |
| Transmission rate | Configurable |
| Status LED | 1 LED charge LED |
| Signalling function | Servo status and fault codes five 7-segment display units |
| Marking | CE |
| Type of cooling | Integrated fan |
| Operating position | Vertical |
| Width | 114 mm |
| Height | 225 mm |
| Depth | 195 mm |
| Net weight | 3.2 kg |
