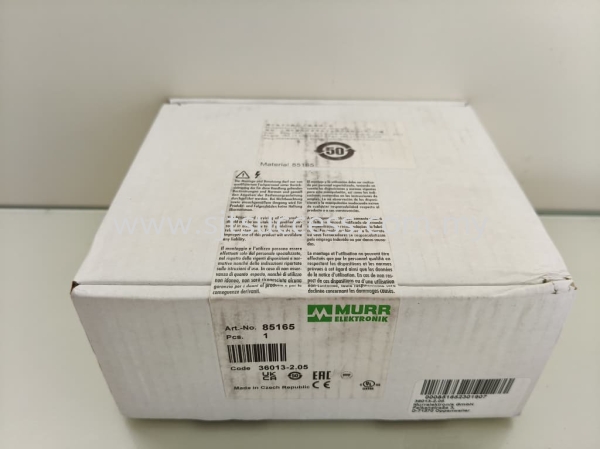

Murr Elektronik 85165 Power Supply Malaysia
Technical Data
Electrical data
| Parallel connection | Yes |
|---|---|
| Number of devices parallel connection max. | 5 |
| Series connection | Yes |
| Number of devices series connection max. | 2 |
Electrical data | Supply
| Security level | SELV |
|---|---|
| Power frequency | 50 ... 60 Hz |
Electrical data | Input
| Input voltage AC min. | 100 V |
|---|---|
| Input voltage AC max. | 265 V |
| Nominal input voltage AC | 115 V … 230 V |
| Nominal current AC | 3.4 A @ 115 V,2.2 A @ 230 V |
| Inrush current max. | 40 A |
| Efficiency | 83 % @ 115 V AC 85 % @ 230 V AC |
| External back-up fuse per phase max. | 16 A |
Electrical data | Output
| Output voltage adjustable | Yes |
|---|---|
| Output voltage DC | 24 V |
| Output voltage DC min. | 22 V |
| Output voltage DC max. | 28 V |
| Output current | 10 A |
| Spikes (s-s) max. | 100 mV |
| Ripple effective max. | 20 mV |
Device protection | Electrical
| Overload protection output | Yes |
|---|---|
| Short-circuit protection output | Yes |
Mechanical data | Mounting data
| Height | 128 mm |
|---|---|
| Width | 68 mm |
| Depth | 165 mm |
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, (EN 60715) |
