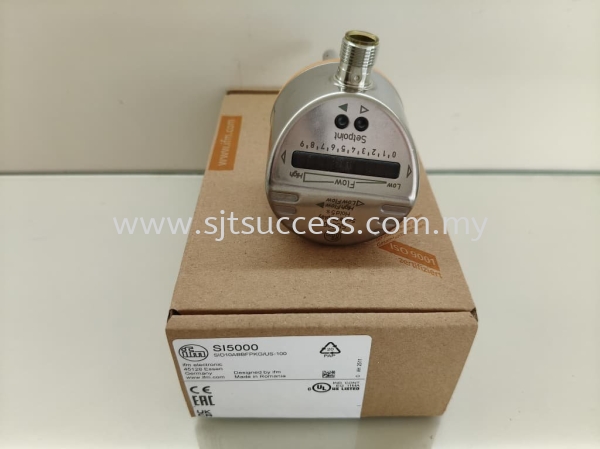

IFM SI5000 Flow Switch Malaysia
- Reliable monitoring of liquids and gases in pipes
- Variable process connection using adapters
- Easy setting of the switch points for quick set-up
- Robust stainless steel housing for use in harsh industrial environments
-
LED bar graph for indication of switch point and flow
Product characteristics
Number of inputs and outputs Number of digital outputs: 1 Process connection threaded connection M18 x 1,5 internal thread Application
Media Liquids; Gases Medium temperature[°C] -25...80 Pressure rating 30 bar 3 MPa Liquids Medium temperature[°C] -25...80 Gases Medium temperature[°C] -25...80 Electrical data
Operating voltage[V] 19...36 DC Current consumption[mA] < 60 Protection class III Reverse polarity protection yes Power-on delay time[s] 10
