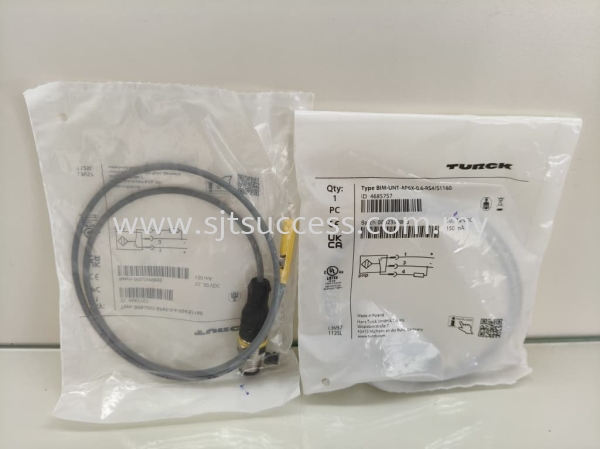

Turck BIM-UNT-AP6X-0.6-RS4/S1160 Magnetic Field Sensor Malaysia
TURCK MALAYSIA BIM-UNT-AP6X-0.6-RS4/S1160 MALAYSIA BIM-UNT-AP6X-0.6-RS4/S1160 PRICE TURCK SENSOR MALAYSIA TURCK 4685757
| Type | BIM-UNT-AP6X-0.6-RS4/S1160 |
| ID | 4685757 |
| Special version | S1160 corresponds to: Weld-resistant cable |
| General data | |
| Pass speed | ≤ 10 m/s |
| Repeatability | ≤ ± 0.1 mm |
| Temperature drift | ≤ 0.1 mm |
| Hysteresis | ≤ 1 mm |
| Electrical data | |
| Operating voltage | 10…30 VDC |
| Residual ripple | ≤ 10 % Uss |
| DC rated operational current | ≤ 150 mA |
| No-load current | 15 mA |
| Residual current | ≤ 0.1 mA |
| Isolation test voltage | ≤ 0.5 kV |
| Short-circuit protection | yes / Cyclic |
| Voltage drop at Ie | ≤ 1.8 V |
| Wire breakage/Reverse polarity protection | yes / Complete |
| Output function | 3-wire, NO contact, PNP |
| Switching frequency | 1 kHz |
