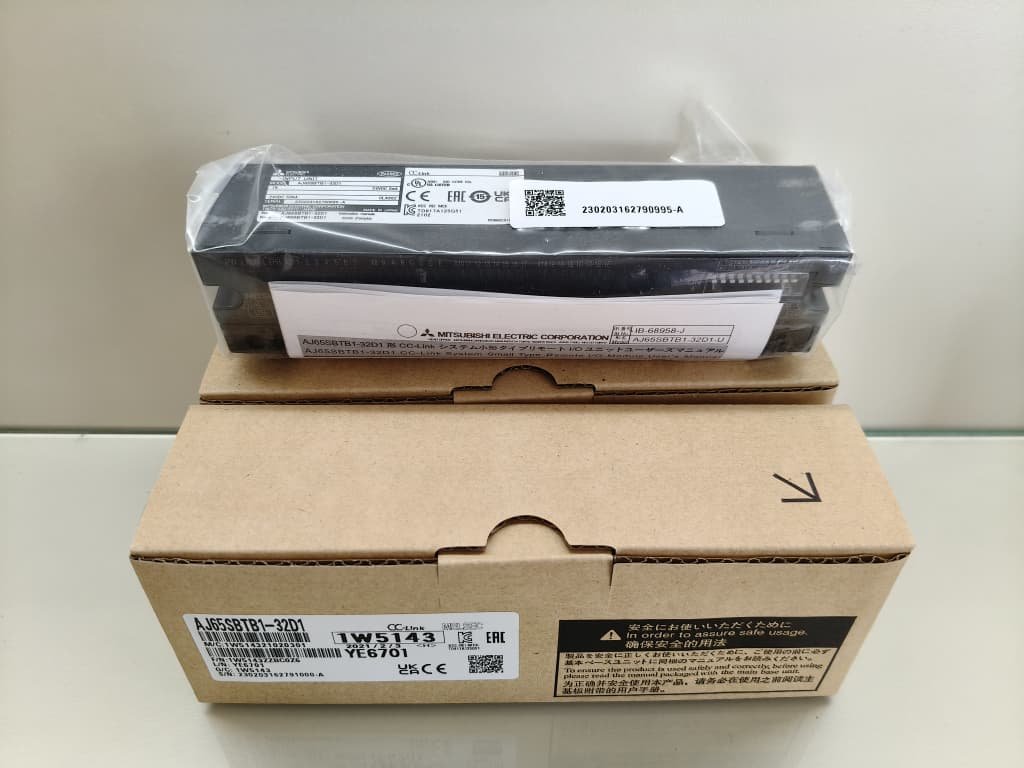

Mitsubishi AJ65SBTB1-32D1 Malaysia
Performance specifications
|
Input specifications |
|
Input type |
|
Number of input points |
|
Rated input voltage |
|
Rated input current |
|
Maximum number of simultaneous input points |
|
ON voltage/ON current |
|
OFF voltage/OFF current |
|
Input resistance |
|
Input response time |
OFF to ON |
|
ON to OFF |
|
Input common terminal arrangement |
|
Input isolation method |
|
Common specifications |
|
Dielectric withstand voltage |
|
Insulation resistance |
|
Protection degree |
|
Station type |
|
Number of occupied stations |
|
Module power supply |
Voltage |
|
Current |
|
External interface |
|
|
External dimensions |
Height |
|
Width |
|
Depth |
|
Weight |
|
|
|
DC input (positive/negative shared common type)
|
|
32 points
|
|
24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...26.4 V DC)
|
|
Approx. 5 mA
|
|
100 %
|
|
15 V or more/3 mA or more
|
|
3 V or less/0.5 mA or less
|
|
Approx. 4.7 kΩ
|
|
0.2 ms or less (24 V DC)
|
|
0.2 ms or less (24 V DC)
|
|
32 points/common (1-wire, terminal block type)
|
|
Photocoupler
|
|
|
|
Between all DC external terminals and ground: 500 V AC for 1 minute
|
|
Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
|
|
IP2X
|
|
Remote I/O station
|
|
1 station
|
|
20.4...26.4 V DC (ripple ratio: within 5 %)
|
|
50 mA or less (at 24 V DC, all points ON)
|
|
Communication part, module power supply part: 7-point two-piece terminal block (M3 screw)
I/O power supply part, I/O part: 34-point direct-mount terminal block (M3 screw)
|
|
50 mm
|
|
179 mm
|
|
40 mm
|
|
0.25 kg
|
