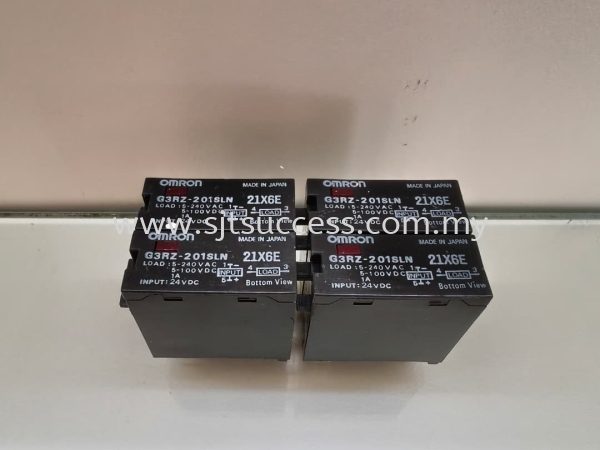

Omron G3RZ-201SLN Relay Malaysia
| Product classification | Relay compatible | |
|---|---|---|
| Isolation method | Photo volt coupler | |
| Zero cross function | None | |
| Operating indicator | Equipped | |
| Terminal structure | Plug-in terminal | |
| Mounting | Socket | |
| Input | Rated voltage | 24 VDC |
| Operating voltage range | 19.2 to 28.8 VDC | |
| Input impedance | 2.2 kΩ±20% | |
| Operate voltage | 19.2 V max.DC | |
| Release voltage | 1 V min.DC | |
| Output | Rated load voltage |
5 to 100 VDC 5 to 240 VAC |
| Load voltage range |
3 to 125 VDC 3 to 264 VAC |
|
| Load current | 100 µA to 1 A | |
| Inrush current resistivity | 10 A (10 ms) | |
