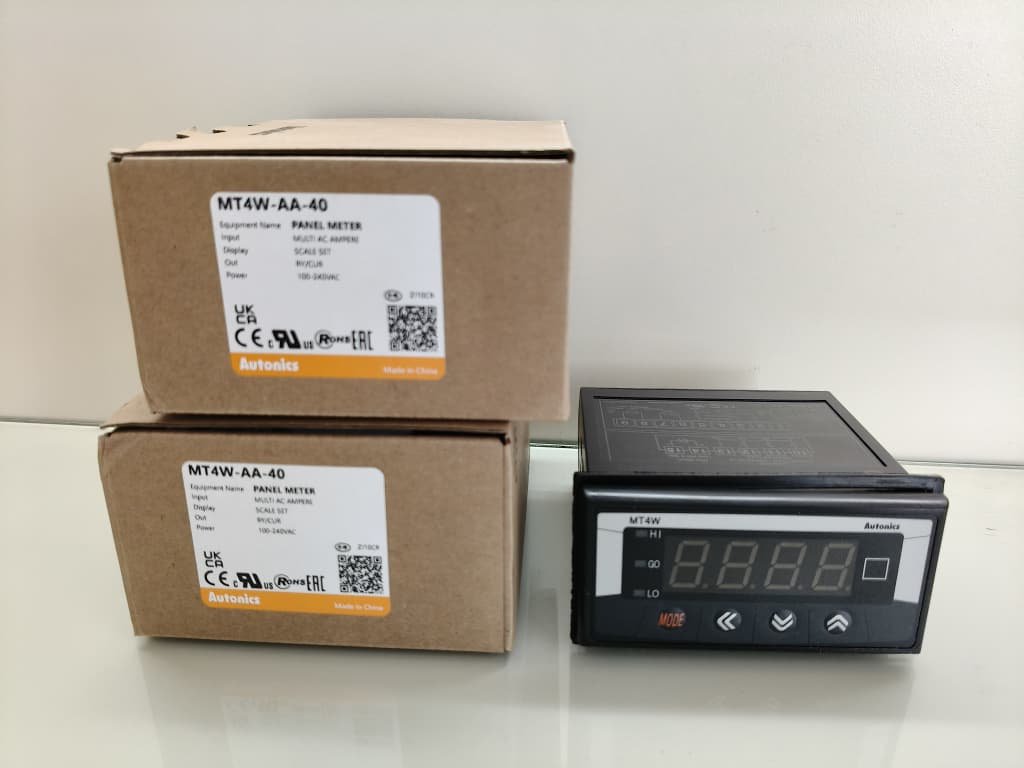

Autonics MT4W-AA-40 Panel Meter Malaysia
MT4W-AA-40
- Display method : 4-digit 7-segment LED
- Character height : 14.2mm
- Max. display Range : -1999 to 9999
- Measurement : AC current, Frequency
-
Input specification : 0-5A, 0-2.5A, 0-1A, 0-500mA, 0-250mA, 0-100mA, 0-50mA
Data sheet Print
Display method 4-digit 7-segment LED Character height 14.2mm Max. display Range -1999 to 9999 Measurement AC current, Frequency Input specification 0-5A, 0-2.5A, 0-1A, 0-500mA, 0-250mA, 0-100mA, 0-50mA AC Measurement Average value (AVG), Root mean square value (RMS) Power voltage 100-240VAC~ 50/60Hz Output_Main Output(Comparative Value) Relay (HI, GO, LO) Output_Sub Output(Display Value) PV transmission(DC4-20mA) Display accuracy • 23℃±5℃ - ± 0.3 % F.S. rdg ± 3 digit (frequency: ± 0.1 % F.S. rdg ± 2-digit)
• -10℃ to 50℃ - ± 0.5 % F.S. rdg ± 3-digitA/D conversion method ΣΔ (Sigma Delta) ADC Sampling cycle 16.6ms Hold function Includes (external hold function) Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃ Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Insulation type Double insulation or reinforced insulation(mark:
, dielectric strength between the measuring input part and the power part: 1kV)Protection structure IP56 (front part, IEC standard) Unit weight (packaged weight) ≈ 211 g (≈ 326 g)
