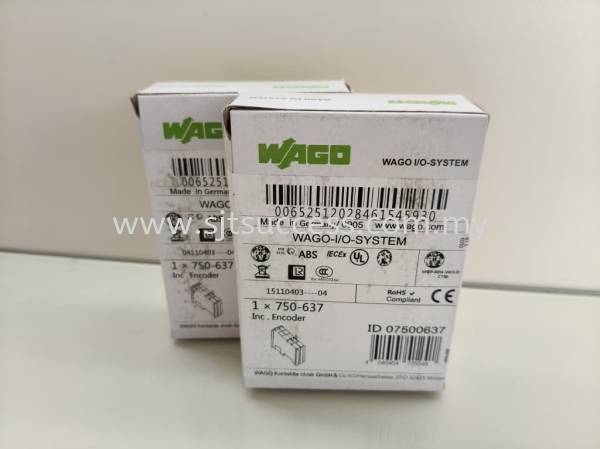

Wago 750-637 Incremental Encoder Interface Malaysia
Technical data
| Counter depth | 32Bit |
| Encoder connection | A; /A; B; /B; C; /C (RS-422 inputs) |
| Supply current (encoder) max. | 300mA |
| Zero impulse (latch) | 32Bit |
| Quadrature decoder | 4x evaluation |
| Input current (typ.) | Latch 5 mA, Gate 7 mA, Ref. 7 mA |
| Output current per channel | 0.5A |
| Output current | short-circuit-protected |
| Output voltage | 24 VDC |
| Voltage range for signal (0) | UABC = RS-422; Latch, gate, ref.: -3 … +5 VDC |
| Voltage range for signal (1) | UABC = RS-422; Latch, gate, ref.: 15 … 30 VDC |
| Data width | 1 x 32-bit data 2 x 8-bit control/status |
| Limit frequency | 250kHz |
| Commands | Reading, setting, activating |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 110mA |
| Current consumption, field supply (module with no external load) | 35mA |
| Isolation | 500 V system/field |
| Indicators | LED (A-D/A-D) green: A, C, B, Latch, Gate, N1, Ref, N2 |
