Autonics BR200-DDTN Photo Sensor Malaysia

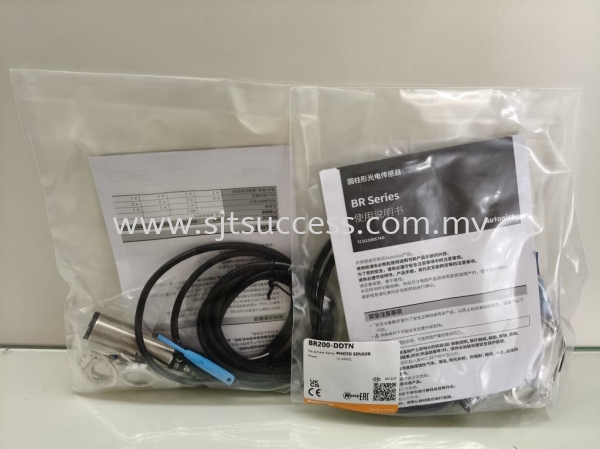

BR200-DDTN
- Sensing type : Narrow beam reflective type
- Sensing distance : 200mm
- Sensing target : Opaque, Translucent material
- Light source : Infrared LED(850nm)
- Response time : Max. 1ms
-
Power voltage : 12-24VDC
±10%(ripple P-P: max. 10%) - Operation mode : Light ON/Dark ON(set by control wire)
-
Control output : NPN open collector
Data sheet Print
Sensing type Narrow beam reflective type Sensing distance 200mm Sensing target Opaque, Translucent material Light source Infrared LED(850nm) Response time Max. 1ms Power voltage 12-24VDC ±10%(ripple P-P: max. 10%)Current consumption Max. 45mA Sensitivity adjustment Sensitivity adjuster Operation mode Light ON/Dark ON(set by control wire) Control output NPN open collector Connection type Cable type(Ø5, 2m) Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) Environment_Ambient temperature -10 to 60℃, storage: -25 to 75℃ Protection structure IP66 Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH Hysteresis(distance) Max. 20% at rated sensing distance Material Case - Brass, Ni-plate
Sensing part - Polycarbonate lensAccessories M18 fixing nut: 2, washer:1, adjustment screwdriver Weight Approx. 160g(approx. 120g)
