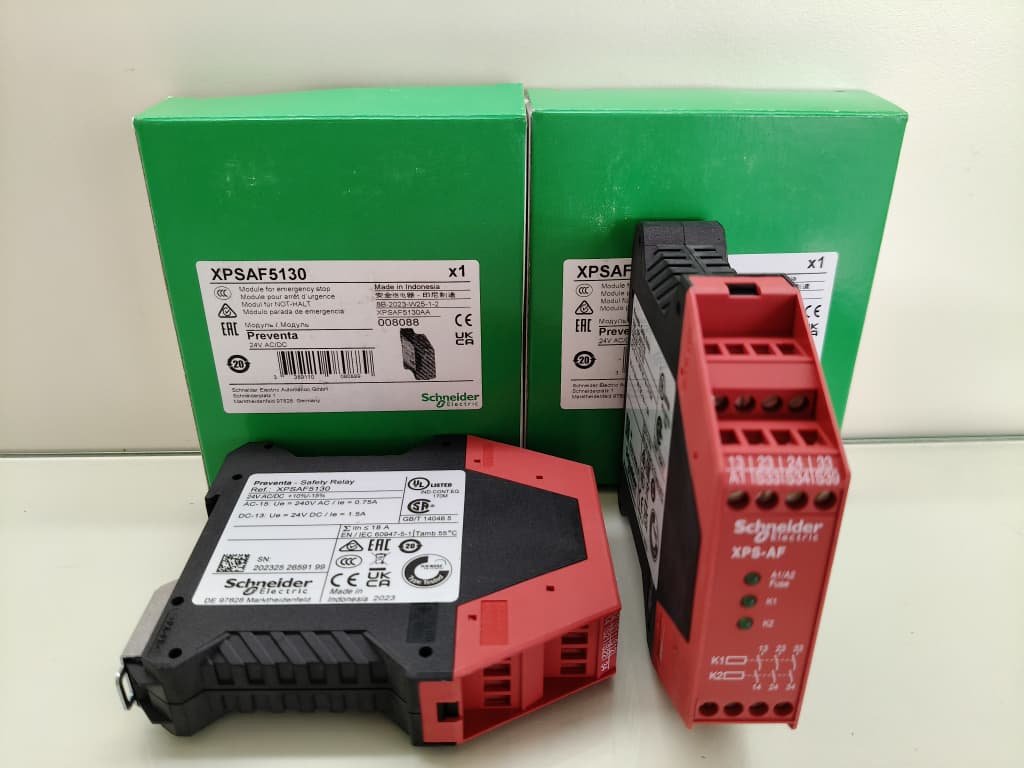

Schneider XPSAF5130 Emergency Stop Malaysia
Specifications
Main
|
Range of product |
Preventa Safety automation |
|
Product or component type |
Preventa safety module |
|
Safety module name |
XPSAF |
|
Safety module application |
For emergency stop and switch monitoring |
|
Function of module |
Emergency stop monitoring 1-channel wiring
Emergency stop monitoring 2-channel wiring
Monitoring of a movable guard |
|
Safety level |
Can reach PL e/category 4 conforming to ISO 13849-1
Can reach category 3 conforming to IEC 62061 |
|
Safety reliability data |
DC > 99 % conforming to ISO 13849-1
MTTFd = 243 years conforming to ISO 13849-1
PFHd = 4.62E-9 1/h conforming to IEC 62061 |
|
Type of start |
Configurable |
|
Connections - terminals |
Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid with cable end, with double bezel
Captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezel
Captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
|
Output type |
Relay instantaneous opening, 3 NO circuit(s), volt-free |
|
Number of additional circuits |
0 |
|
[Us] rated supply voltage |
24 V AC - 15...10 %
24 V DC - 15...10 % |
