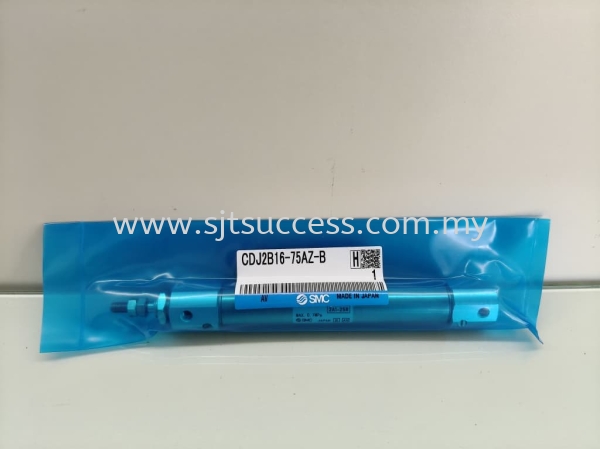

SMC CDJ2B16-75AZ-B Air Cylinder Malaysia
Specifications: CJ2-Z Series Air Cylinder:Standard Type, Double Acting, Single Rod
¡ñDouble foot, head flange are added to the mounting types
¡ñEasy fine adjustment of auto switch position
¡ñThe auto switch mounting type, band or rail can be selected with the model number
¡ñPart numbers with rod end bracket and/or pivot bracket available (Not necessary to order a bracket for the applicable cylinder separately.)
¡ñWith auto switch (Series CDJ2-Z: CDJ2£¬CDJ2W£¬CDJ2K£¬CDJ2Z£¬CDJ2ZW£¬CDJ2RA£¬CDJ2RK)
¡ñEasy fine adjustment of auto switch position
¡ñThe auto switch mounting type, band or rail can be selected with the model number
¡ñPart numbers with rod end bracket and/or pivot bracket available (Not necessary to order a bracket for the applicable cylinder separately.)
¡ñWith auto switch (Series CDJ2-Z: CDJ2£¬CDJ2W£¬CDJ2K£¬CDJ2Z£¬CDJ2ZW£¬CDJ2RA£¬CDJ2RK)
| Field | Value | Value Details |
|---|---|---|
| With Auto Switch(Built-in Magnet) | D | With Auto Switch |
| Mounting Style | B | Basic |
| Bore Size | 16 | Bore Size 16 mm |
| Cylinder Stroke | 75 | Standard Stroke 75 mm |
| Dual Stroke Mark | - | Without Two Stroke Mark |
| Cylinder Stroke 2 | - | Without Cylinder Stroke 2 |
| Suffix For Cylinder | A | Air Cushion |
| Head Cover Port Location | - | Perpendicular To Axis |
| Pivot Bracket | - | None |
| Rod End Bracket | - | None |
| Auto Switch | - | Without Auto Switch |
| Number Of Auto Switches | - | 2 pcs. Or None |
| Auto Switch Mounting Style | B | Band Mounting Style |
| Made To Order | - | Standard |
