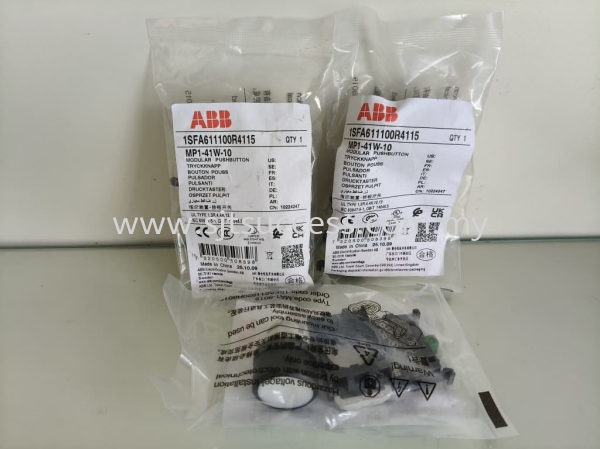

ABB MP1-41W-10 Pushbutton Malaysia

WhatsApp me if you interested

Dimensions

Product Net Width:

0.048 m

Product Net Height:

0.03 m

Product Net Depth / Length:

0.062 m

Product Net Weight:

0.03 kg

Technical

Ambient Air Temperature:

Operation -25 ... +70 °C

Storage -40 ... +85 °C

Color:

White

Actuator Type:

Flush

Bezel Material:

Plastic

Illumination:

Illuminated

Function:

Momentary

Number of Auxiliary Contacts NO:

Enclosure Type NEMA:

Type1

Type12

Type13

Type3R

Type4

Type4X

Pollution Degree:

Rated Insulation Voltage (Ui):

690 V

Rated Impulse Withstand Voltage (Uimp):

6 kV

Rated Frequency (f):

50 / 60 Hz

Rated Operational Voltage:

Maximum 690 V

Power Loss:

Maximum 2.5 W

Connecting Capacity:

Flexible with Ferrule 1 x 0.75...2.5 mm²

Flexible with Ferrule 2 x 0.75...2.5 mm²

Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²

Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²

Flexible 1 x 0.75 ... 2.5 mm²

Flexible 2 x 0.75 ... 2.5 mm²

Solid 1 x 0.75...2.5 mm²

Solid 2 x 0.75...2.5 mm²

Connection Type:

Screw Clamp

Terminal Type:

Screw Terminals

Tightening Torque:

0.9 N·m

Wire Stripping Length:

8 mm
