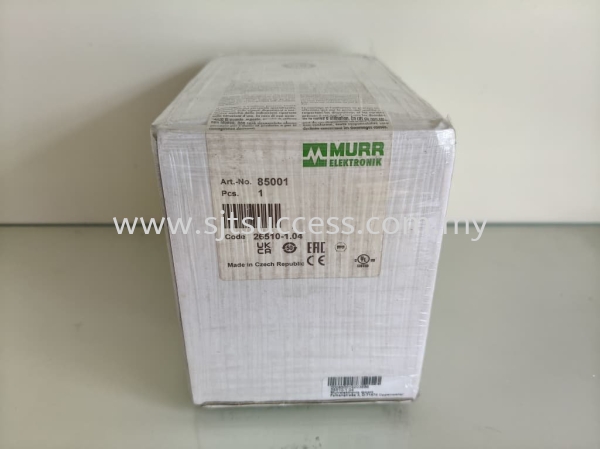

Murr Elektronik 85001 Evolution Power Supply Malaysia
85001 MALAYSIA 85001 PRICE MURR ELEKTRONIK MALAYSIA MURR ELEKTRONIK EVOLUTION MURR ELEKTRONIK POWER SUPPLY
Technical Data
Header
| Material short text | Evolution 10-3x360-520/24 |
|---|
Electrical data
| Security level | SELV |
|---|---|
| Parallel connection | Yes |
| Number of devices parallel connection max. | 5 |
| Series connection | Yes |
| Number of devices series connection max. | 2 |
Electrical data | Supply
| Power frequency | 50 ... 60 Hz |
|---|
Electrical data | Input
| Phase number input | 3 |
|---|---|
| Input voltage AC min. | 324 V |
| Input voltage AC max. | 572 V |
| Nominal input voltage AC | 3 |
| Input voltage DC min. | 480 V |
| Input voltage DC max. | 745 V |
| Input current AC (3-phase) | 0,8 A |
| Nominal current AC | 3 |
| Inrush current max. | 15 A |
| Efficiency | 90 % @ 3× 400 V AC 90 % @ 3× 520 V AC |
| Characteristic back-up fuse | Inertia |
| External back-up fuse per phase max. | 10 A |
Electrical data | Output
| Output voltage adjustable | Yes |
|---|---|
| Output voltage DC | 24 V |
| Output voltage DC min. | 22 V |
| Output voltage DC max. | 28 V |
| Output current | 10 A |
| Mains failure bridging min. | 19 ms @ 400 V AC |
| Power Boost | 150 % |
| Duration Power Boost min. | 4 s |
| Spikes (s-s) max. | 100 mV |
| Ripple effective max. | 50 mV |
