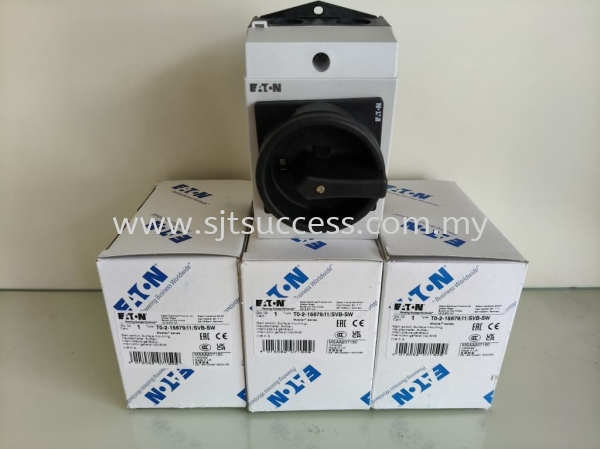

Eaton T0-2-15679/I1/SVB-SW Main Switch Malaysia
Eaton Malaysia EATON 207150 EATON MAIN SWITCH T0-2-15679/I1/SVB-SW MALAYSIA T0-2-15679/I1/SVB-SW PRICE
General specifications
| Product Name |
Eaton Moeller® series T0 Main switch
|
| Catalog Number |
207150
|
| EAN |
4015082071509
|
| Product Length/Depth |
137 mm
|
| Product Height |
110 mm
|
| Product Width |
80 mm
|
| Product Weight |
0.3 kg
|
| Certifications |
VDE 0660
IEC/EN 60947-3 IEC/EN 60947 IEC/EN 60204 |
| Catalog Notes |
Rated Short-time Withstand Current (Icw) for a time of 1 second
|
Features & Functions
| Features |
Version as main switch
Version as maintenance-/service switch |
| Fitted with: |
Black rotary handle and locking ring
|
| Functions |
STOP function
Interlockable |
| Locking facility |
Lockable in the 0 (Off) position
|
| Number of poles |
3
|
General
| Degree of protection |
NEMA 12
|
| Degree of protection (front side) |
IP65
|
| Lifespan, mechanical |
400,000 Operations
|
| Mounting method |
Surface mounting
|
| Mounting position |
As required
|
| Number of contact units |
2
|
| Operating frequency |
1200 Operations/h
|
| Overvoltage category |
III
|
| Pollution degree |
3
|
| Product Category |
Main switch
|
| Rated impulse withstand voltage (Uimp) |
6000 V AC
|
| Safe isolation |
440 V AC, Between the contacts, According to EN 61140
|
| Safety parameter (EN ISO 13849-1) |
B10d values as per EN ISO 13849-1, table C.1
|
| Shock resistance |
15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
|
| Suitable for |
Ground mounting
|
| Switching angle |
90 °
|
