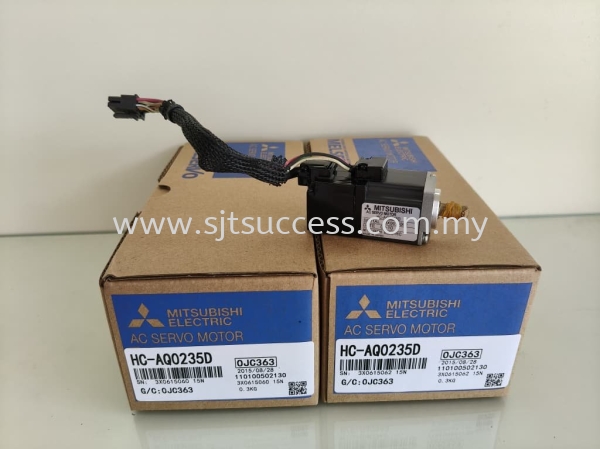

Mitsubishi Electric HC-AQ0235D Ac Servo Motor Malaysia
MITSUBISHI SERVO MALAYSIA SERVO MOTOR MALAYSIA HC-AQ0235D MALAYSIA HC-AQ0235D PRICE MITSUBISHI HC-AQ
Specifications
Primary brand
Mitsubishi Electric
Main function
DC servo motor
Product series / family name
MELSERVO J2-JR series
Sub-range name
HC-AQ series
Functions
DC brushless servo motor
Design
D-cut shaft (with flat)
built-in incremental feedb. encod. (8192ppr)
small model
ultra-low inertia / small power rating
built-in incremental feedb. encod. (8192ppr)
small model
ultra-low inertia / small power rating
Supply voltage (DC)
24Vdc
Rated current
2.4A
Rated active power (kW)
20W / 0.02kW
Rotational speed
3000rpm
5000rpm (maximum)
5000rpm (maximum)
Maximum torque
0.191Nm
Moment of inertia
0.0072kg.m2 (72kg.cm2)
Mounting mode
28x28mm flange mounting
Resolution
8192ppr (equivalent to 13-bit) encod. feedb.
Degree of protection
IP55
Dimensions
H50mm x W28mm x D77mm
Net Height (mm)
50 mm
Net Width (mm)
28 mm
Net Depth (mm)
77 mm
Maximum radial load
44 N
Technical compatibility with
MR-J2 series
Maximum current
7.7 A
Order code / Manufacturer SKU
HC-AQ0235D
