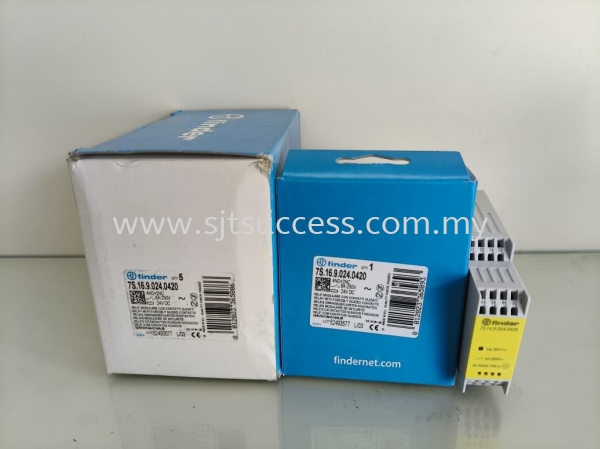

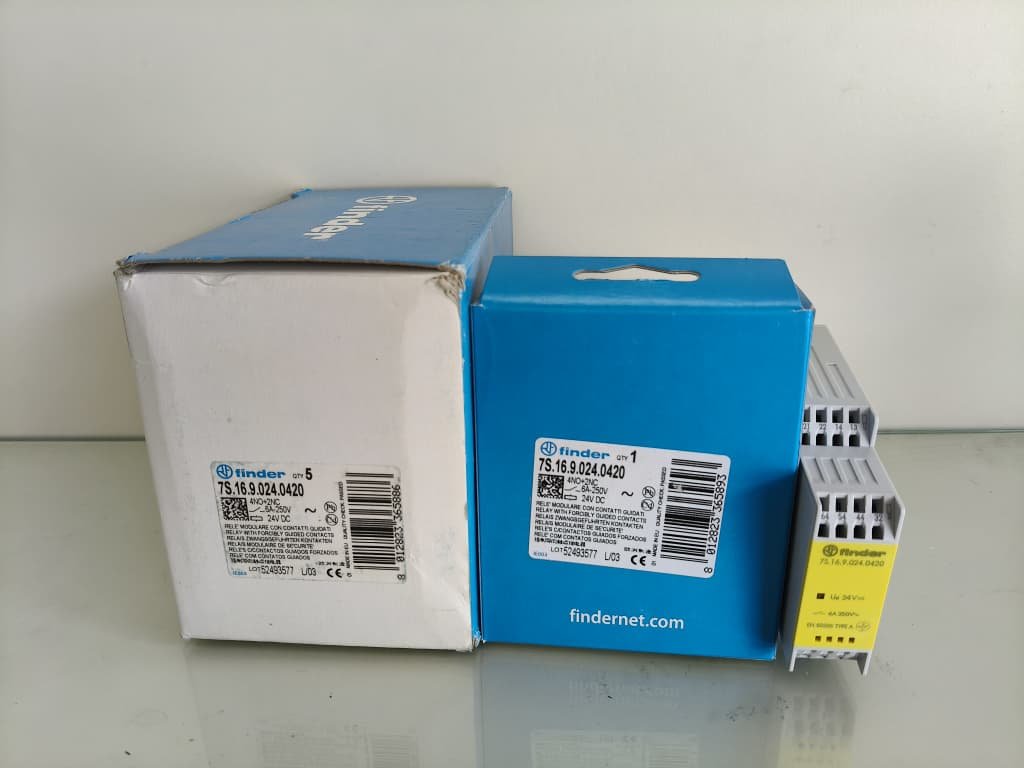

Finder 7S.16.9.024.0420 Relay Module Malaysia
Function and features
Type 7S.16 relay modules with forcibly guided contacts, 6 contacts (4 NO + 2 NC and 5 NO + 1 NC). Suited for railway applications.
Features include:
-
Relay with guided contacts Type A according to EN 61810-3 (ex EN 50205) for safety applications
-
For the functional safety of machines and systems according to EN 13849-1
-
For railway applications; plastic materials compliant with fire and smoke specifications according to EN 45545; mechanical and climatic characteristics according to EN 61373 and EN 50155
-
Versions for DC and AC power supplies – 24 and 110 V DC versions with extended operating range (0.7… 1.25) UN – Indication LED – 35 mm rail (EN 60715) mounting
