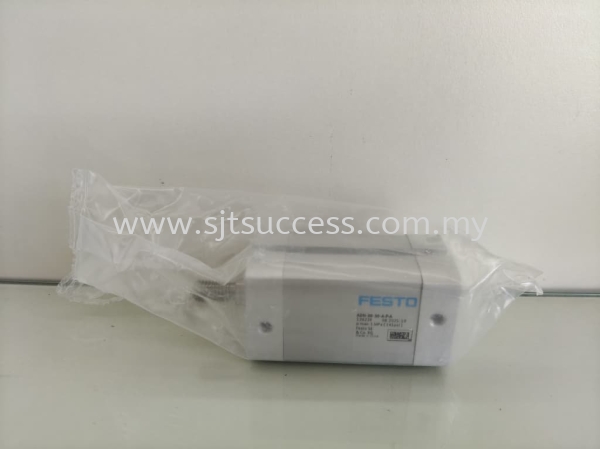

Festo ADN-20-30-A-P-A Compact Cylinder Malaysia
Technical Data
- Stroke30 mm
- Piston diameter20 mm
- Piston rod threadM8
- CushioningElastic cushioning rings/plates at both ends
- Mounting positionoptional
- Conforms to standardISO 21287
- Piston-rod endMale thread
- Position detectionVia proximity switch
- Symbol00991217
- VariantsPiston rod at one end
- Operating pressure0.06 MPa ... 1 MPa
- Operating pressure0.6 bar ... 10 bar
- Mode of operationDouble-acting
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 - Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Cleanroom classClass 5 according to ISO 14644-1
- Ambient temperature-20 °C ... 80 °C
- Impact energy in end positions0.2 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke141 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188 N
- Moving mass51 g
- Product weight194 g
- Type of mountingWith through-hole Via female thread With accessories
- Pneumatic connectionM5
- Note on materialsRoHS-compliant
- Material collar screwsSteel
- Material coverAnodised wrought aluminium alloy
- Material sealsTPE-U(PUR)
- Material piston rodHigh-alloy steel
- Material cylinder barrelSmooth-anodised wrought aluminium alloy
