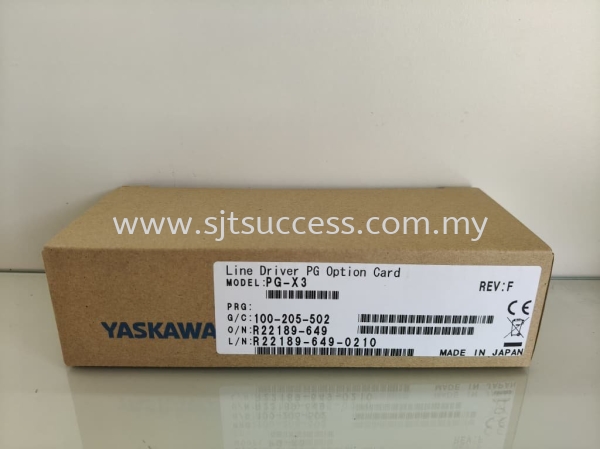

Yaskawa PG-X3 Line Driver PG Option Card Malaysia
| Items | Specifications |
| Model | PG-X3 |
|
Compatible Pulse Generators |
Line driver Single-pulse (A pulse), two-pulse (A, B pulse) or three-pulse (A, B, Z (R) pulse) |
| PG Encoder Wiring Length | 100 m (328 ft) maximum |
| PG Encoder Power Supply |
Output voltage: 12 V ± 5% or 5.5 V ± 5% Max. Output Current: 200 mA |
|
Compatible Control Modes |
V/f w/PG, CLV, AOLV, CLV/PM |
| Maximum Input Frequency | 300 kHz |
| Pulse Monitor Output | Monitor for A channel, B channel, and Z pulse output Matches RS-422 level |
| Pulse Monitor Wiring Length | 100 m (328 ft) maximum |
|
PG Encoder Disconnect Detection |
Software and hardware detection |
| Ambient Temperature | -10°C to +50°C (14°F to 122°F) |
| Humidity | 95% RH or lower with no condensation |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) allowed for short-term transport of the product |
| Area of Use |
Indoors and free from:
|
| Altitude | 1000 m (3280 ft) or lower |
